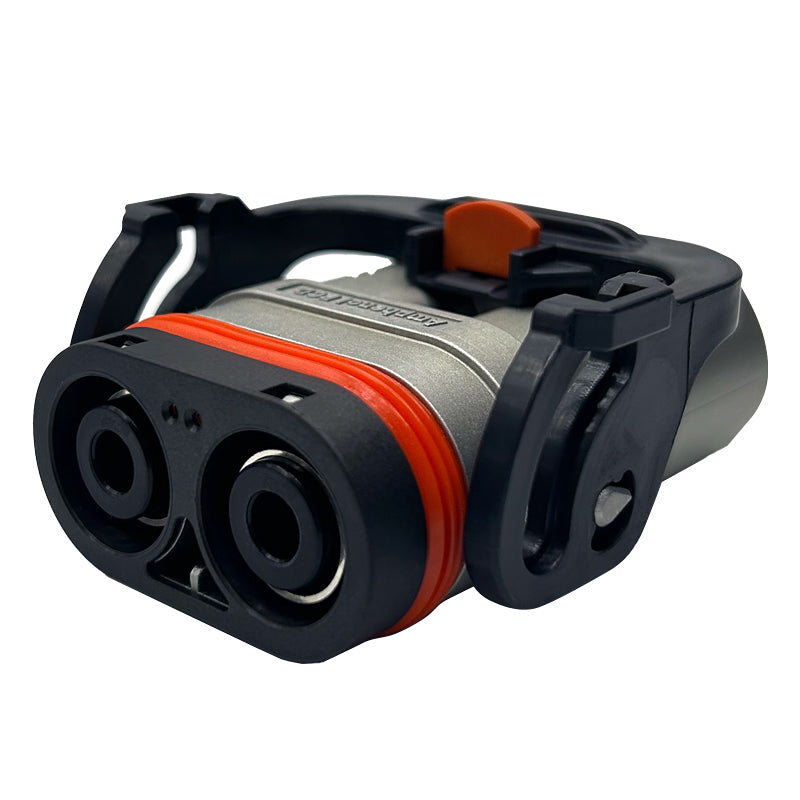

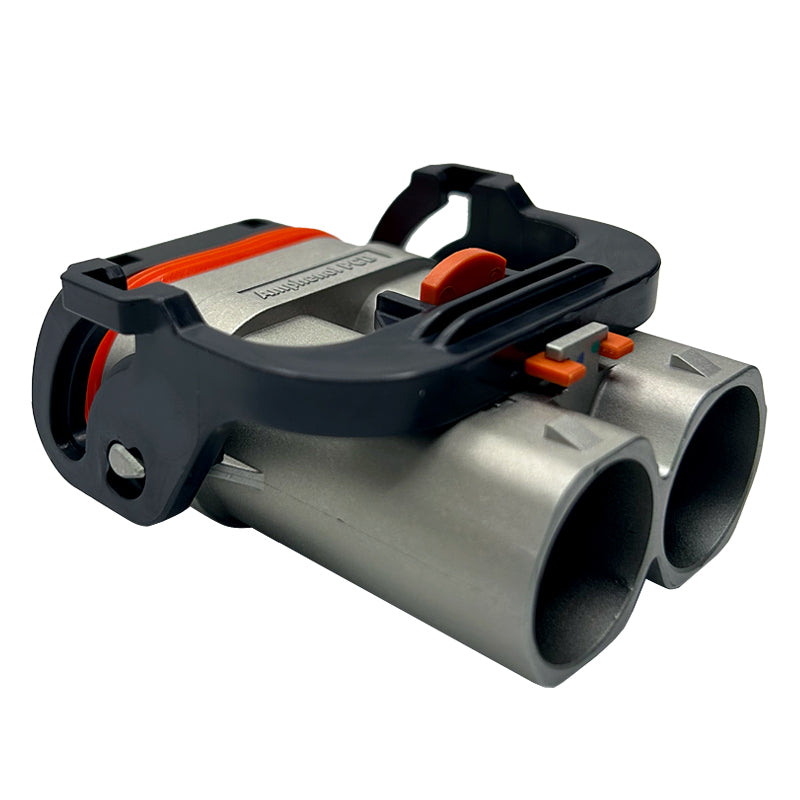

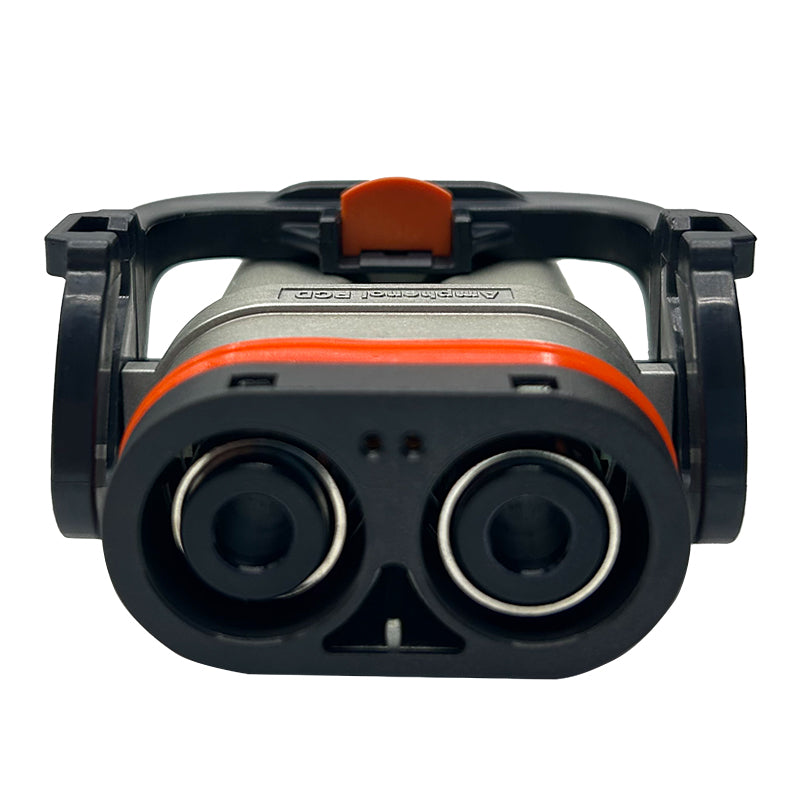

HVSLS600062A125
- Female Cable Connector
- 2 pole
- Straight
- A-coded
- 25 mm²
- With HVIL
- Product SKU: HVSLS600062A125
- Category:EV Connectors,New Products
- Contact for high volume orders (25 or more) for special pricing
High Voltage Safety Lock (HVSL) Connectors
Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.
High Voltage Safety Lock (HVSL) Connectors
Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.
| Model: | HVSLS600062A125 |
| Number of Positions (w/o PE) | 2 |
| Rated Voltage: | 1000V |
| Rated Current (40°C): | 120A |
| IP-Class Mated: | IP69K |
| Gender: | Female Cable Connector |
| Termination Style: | Crimp |
| High Voltage Interlock | Yes |
| Maximum Operating Temperature: | + 125 C |
| Minimum Operating Temperature: | - 40 C |
| Product Type: | Automotive Connectors |
| Max. Wire Gauge: | 25 |
| Min. Wire Gauge: | 25 |
| Shielding: | Yes |
| RoHS Compliant: | Yes |
