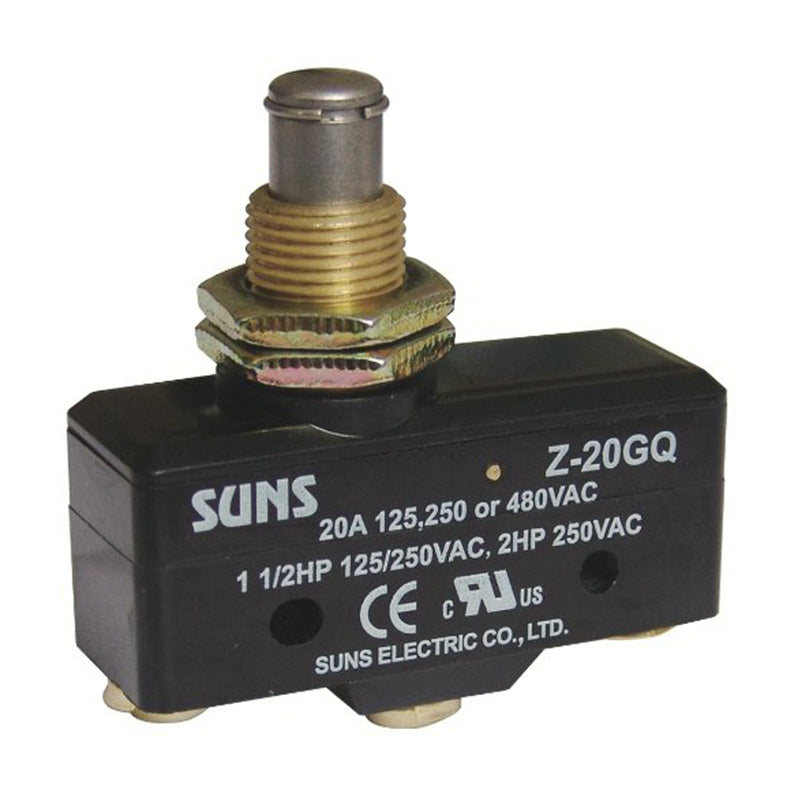

Z-20GQ
![Z-20GQ]()
Z-20GQ
Available: 1 item in stock
- Product SKU: Z-20GQ
- Category:Electromechanical Switches
- Contact for high volume orders (25 or more) for special pricing
$35.57 CAD
| Model: | Z-20GQ |
| Operating Speed: | 0.01mm-1m/sec |
| Operating Frequency: | Mechanical:240 ops/min Electrical:20 ops/min |
| Insulation Resistance: | >100MΩ@500V |
| Rated Voltage/Current: |
20A,125/250/480VAC,1.5HP/125VAC or 2HP/250VAC |
| Service Life: | Mechanically 1×107 (Operations) Electrically 5×105 (Operations) |
| Operating Temperature: | About -25~+80 (-4~+176) |
| Humidity: | <95%RH |
| Degree of protection: | IP00 |
| Delectric Strength: | 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts |
