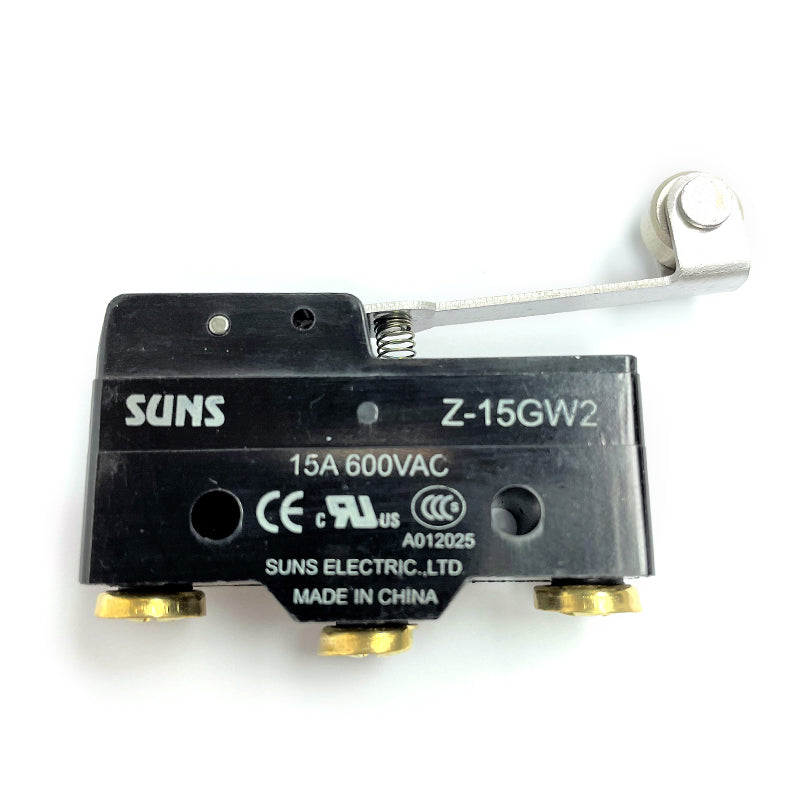

Z-15GW2

Available: 20 items in stock

Product SKU: Z-15GW2
Category:Electromechanical Switches
Contact for high volume orders (25 or more) for special pricing

$24.91 CAD

Description
Specifications

GENERAL-PURPOSE MICRO SWITCHES - Z-15 SERIES

General Standard.

Datasheet (PDF)

GENERAL-PURPOSE MICRO SWITCHES - Z-15 SERIES

General Standard.

Datasheet (PDF)

Model:	Z-15GW2
Operating Frequency:	0.01mm-1m/sec
Rated Voltage/Current:	15/600VAC (UL file 240199)
Service Life:	Mechanically 1×107 (Operations) Electrically 5×105 (Operations)
Operating Temperature:	About -25~+80 (-4~+176)
Humidity:	<95%RH
Degree of protection:	IP00/IP63
Delectric Strength:	1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
