V15G2
![V15G2]()
V15G2
Available: 10 items in stock
- Product SKU: V15-G2
- Category:Electromechanical Switches
- Contact for high volume orders (25 or more) for special pricing
$10.13 CAD

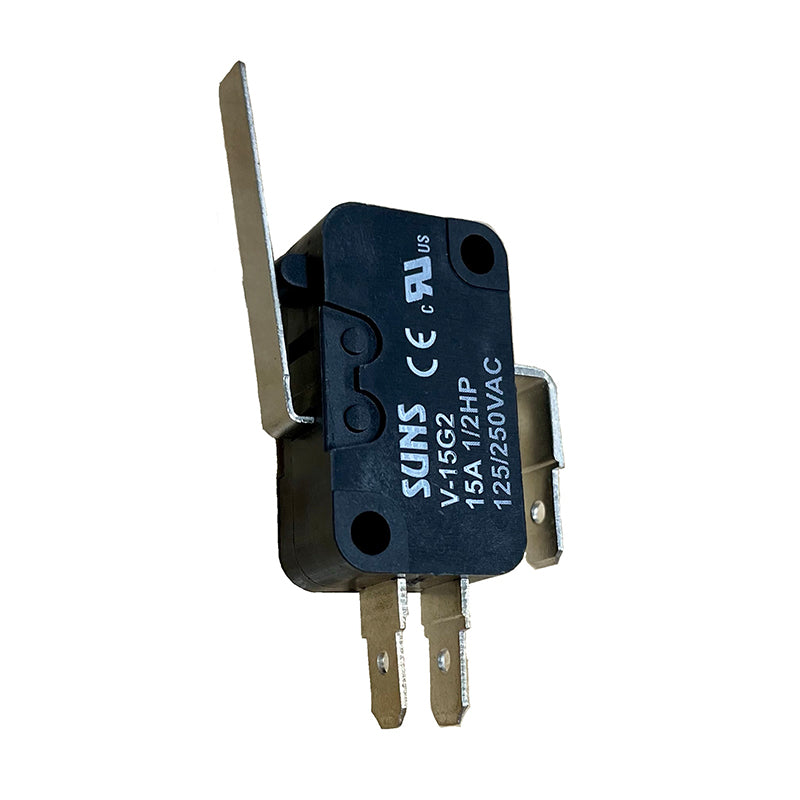

MINATURE BASIC SWITCH V-15G2
SUNS products are safe and reliable products which are widely used in various mechanical devices.
MINATURE BASIC SWITCH V-15G2
SUNS products are safe and reliable products which are widely used in various mechanical devices.
| Model: | V15G2 |
| Operating Speed: | 0.1mm to 1m/s |
| Operating Frequency: |
Mechanical: 600ops/min |
| Insulation Resistance: | 100MΩ min.(at 500VDC) |
| Contact Resistance: | 30mΩ max (initial values) |
| Rated Current/Voltage: | 15A 1/2HP 125/250AV |
| Dielectric Strength: | 1000VAC, 50/60Hz for 1 min between terminals of the same polarity 2000VAC, 50/60Hz for 1 min between current-carrying metal parts and ground, and between each terminal and non-current-carrying metal parts |
| Service Life: | Mechanically: 1×107 (operations) Electrically: 1×105 (operations) |
| Operating Temperature: | Standard: -40~85℃ High Temperature: -40~150℃ |
| Degree of Protection: | IEC IP00 |
