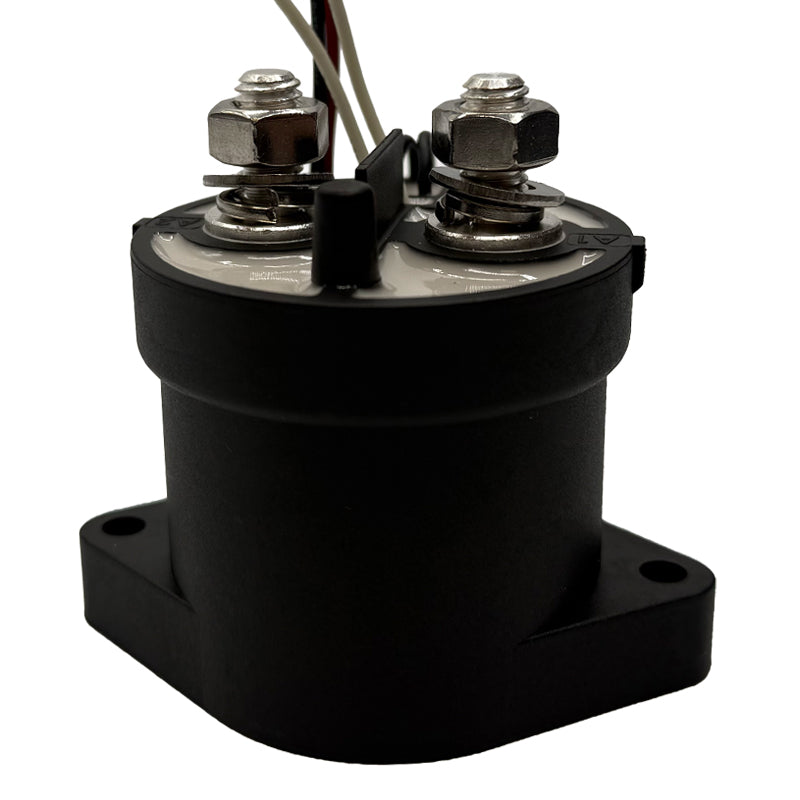

REC45B1JA
![REC45B1JA]()
![REC45B1JA]()
REC45B1JA
Available: 30 items in stock
- Hermetic seal with gas fill
- Optional auxiliary contacts – for main position feedback
- Integrated coil economizer to reduce coil holding power
- Meets RoHS 2011/65/EU
- CE certified
- Product SKU: REC45B1JA
- Category:AC/DC Contactors,New Products
- Contact for high volume orders (25 or more) for special pricing
$88.00 CAD
| Model: | REC45B1JA |
| Contact Arrangement: | Form X, SPST- NO |
| Max Switching Voltage: |
1,000 VDC |
| Dielectric Withstand Voltage Contacts to Coil: | 4,300 VDC, 1 minute |
| Dielectric Withstand Voltage Across Open Contacts: | 4,300 VDC, 1 minute |
| Continuous Current (2 x 127mm 2 conductor): | 500A |
| Overload Current: | 1 minute: 1,000A 5 minutes: 650A |
| Max Short Circuit Current: |
7,000A @ 3ms, 3,000A @ 1s |
| Min Insulation Resistance: | 1,000 MΩ @ 1,000 VDC |
| Contact Resistance: | 0.25 mΩ (max) / 0.15 mΩ (typical) at 300A |
| Operate Time (Max, incl bounce): | 25ms |
| Release Time (Max): | 10ms (max) / 5ms (typical) |
| Shock - Functional, 1/2 Sine, 11ms: | 20G |
| Shock - Destructive, 1/2 Sine, 11ms: | 50G |
| Operating Temperature: | -40˚C to 85˚C |
| Ingress Protection: | Exceeds IP69 (hermetically sealed) |
| Mechanical Life: | 500,000 cycles |
