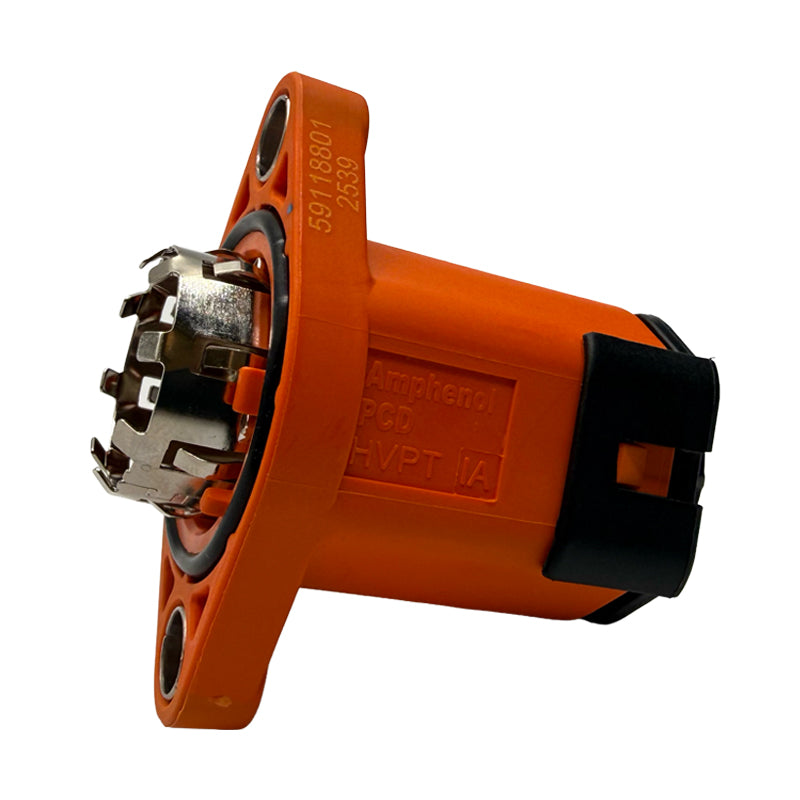

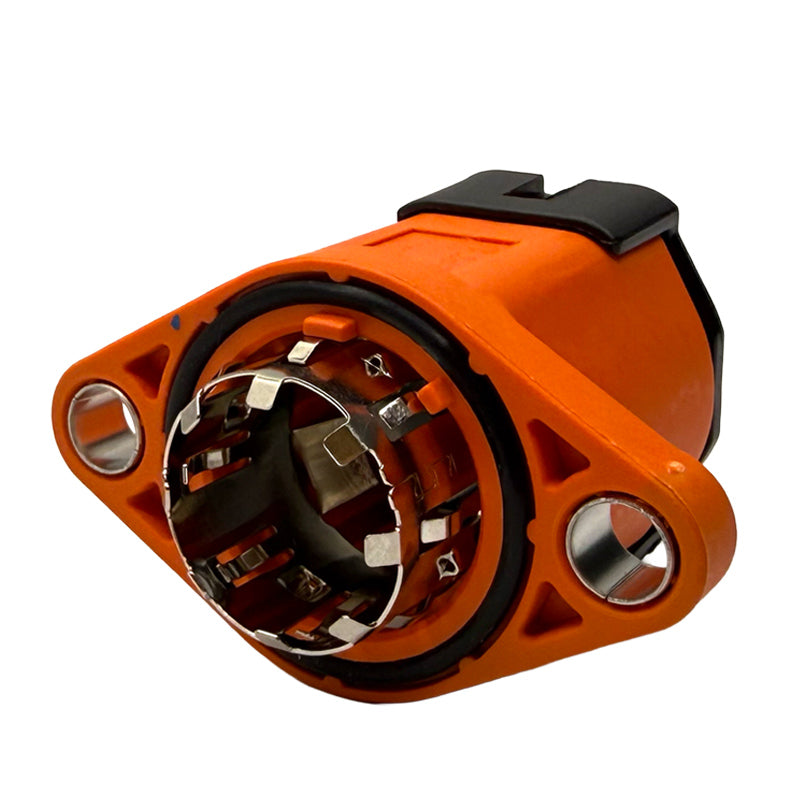

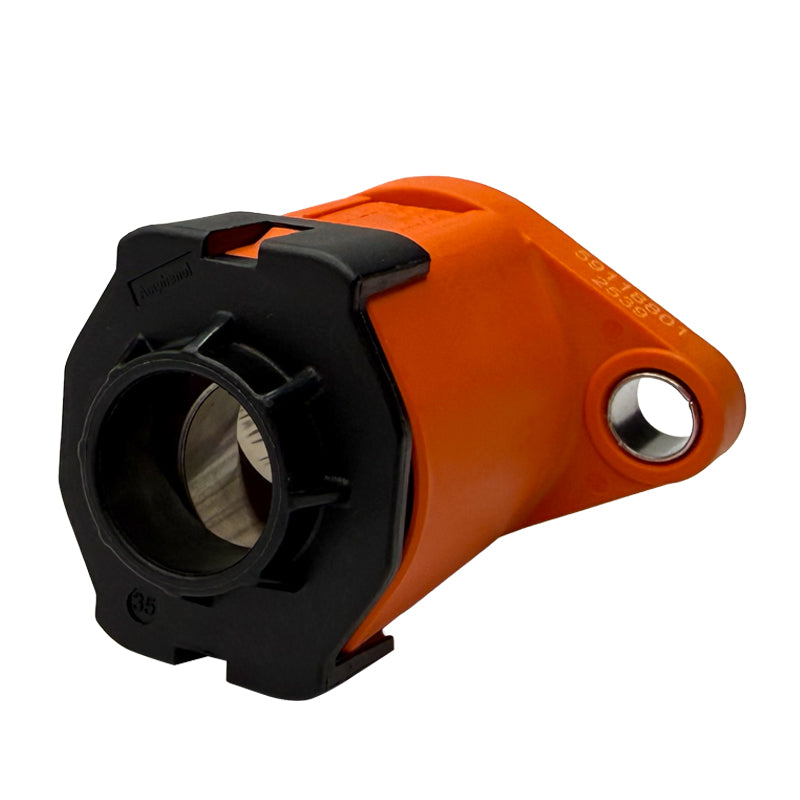

HVPT1A35

Available: 25 items in stock
  • HVPT 1 Pole
  • A-coded
  • 35mm²
$19.93 CAD

HVPT High Voltage Connectors

The Excel|mate PT series offers you shielded wall bushings in a wide range of variants. The lightweight plastic wall bushings in the HVPT series are available for up to 3 poles and conductor cross-sections of 25-70mm². The robust HVPC series, on the other hand, has a metal housing and an 8mm Radsok socket contact for connection to 35-50mm² cables. In combination with the corresponding pin contact with connection option to the busbar rail, the HVPC becomes a pluggable wall bushing. The Excel|mate PT series guarantees 360° shielding over the entire length from the cable end to the device. Both wall bushings offer a rated voltage of 1,000 V and IP67/IP69 K tightness.

Datasheet (PDF)
Drawing (PDF)

HVPT High Voltage Connectors

The Excel|mate PT series offers you shielded wall bushings in a wide range of variants. The lightweight plastic wall bushings in the HVPT series are available for up to 3 poles and conductor cross-sections of 25-70mm². The robust HVPC series, on the other hand, has a metal housing and an 8mm Radsok socket contact for connection to 35-50mm² cables. In combination with the corresponding pin contact with connection option to the busbar rail, the HVPC becomes a pluggable wall bushing. The Excel|mate PT series guarantees 360° shielding over the entire length from the cable end to the device. Both wall bushings offer a rated voltage of 1,000 V and IP67/IP69 K tightness.

Datasheet (PDF)
Drawing (PDF)

Model: HVPT1A35
Current Rating: 150 A
Number of Positions  1
Termination Style: Crimp
Rated Voltage: 1000V
Gender: Male
Housing: Polyamide (PA)
Wire Gauge Max: 2 AWG
IP Rating:  IP67 / IP69K
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Heavy Duty Power Connector
