HVCONT1001
![HVCONT1001]()
![HVCONT1001]()
![HVCONT1001]()
![HVCONT1001]()
![HVCONT1001]()
HVCONT1001
Available: 9 items in stock
- NACS to CCS1 Adapter
- UL and CSA Approval
- Product SKU: HVCONT1001
- Category:EV Connectors,New Products
- Contact for high volume orders (25 or more) for special pricing
$268.00 CAD

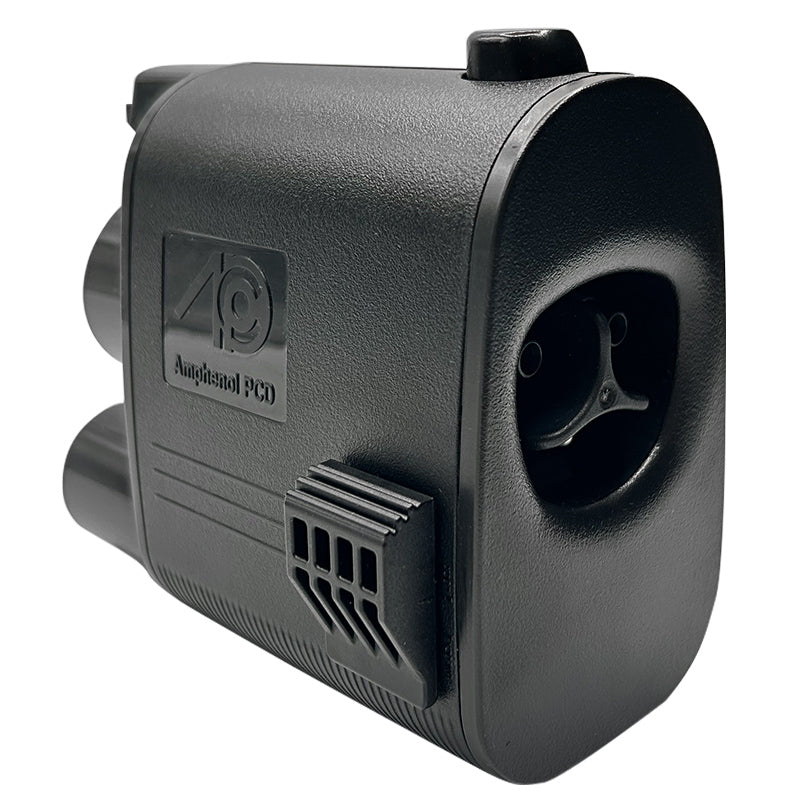

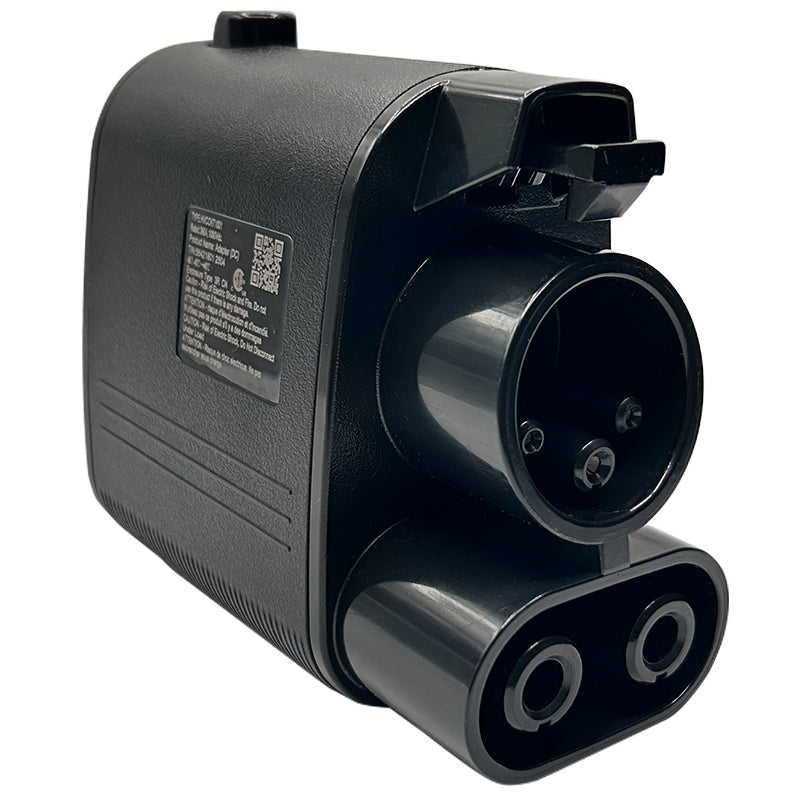

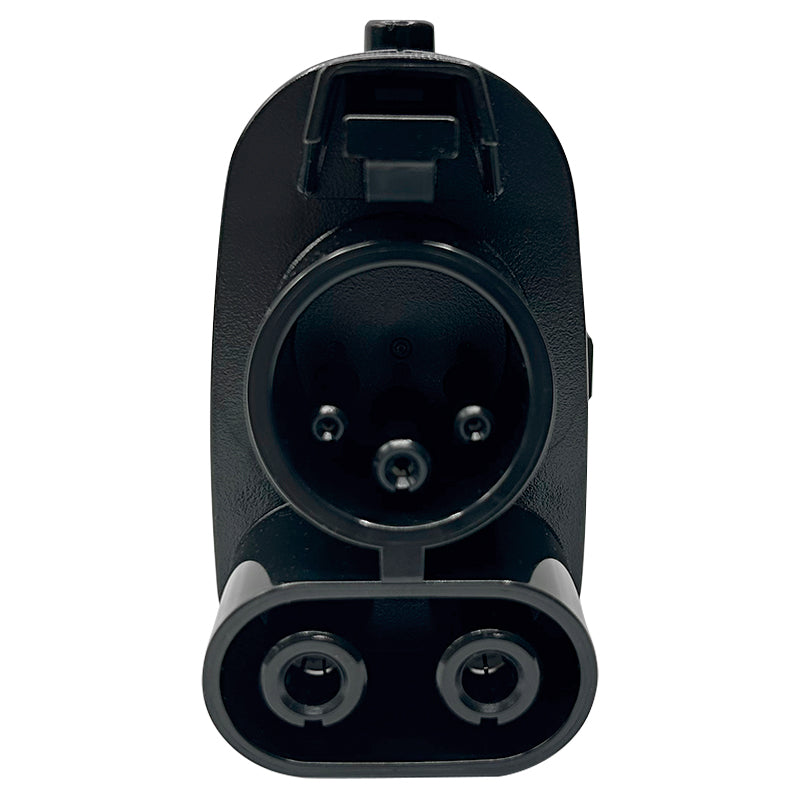

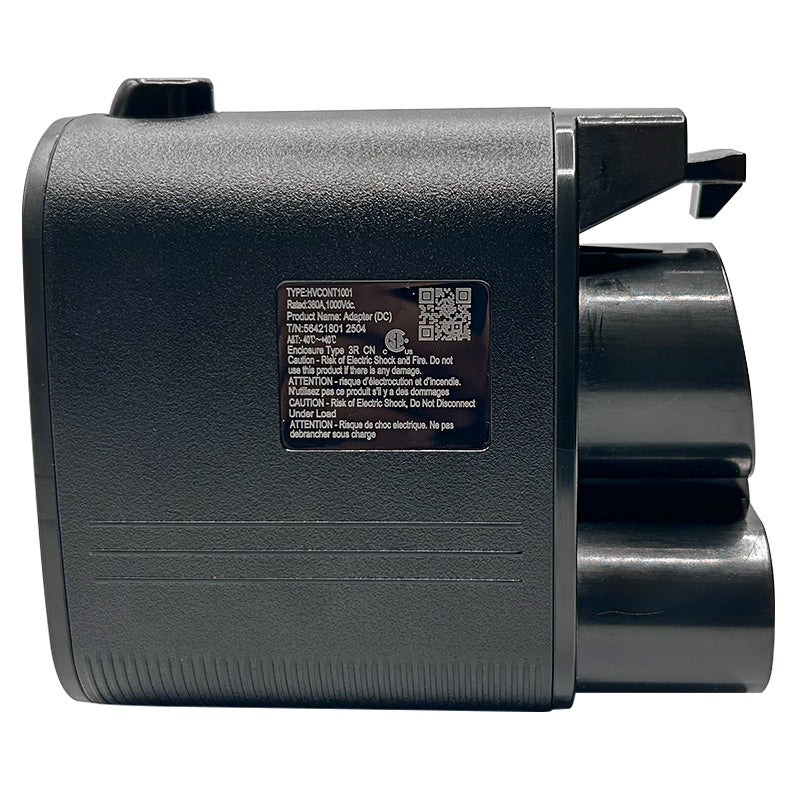

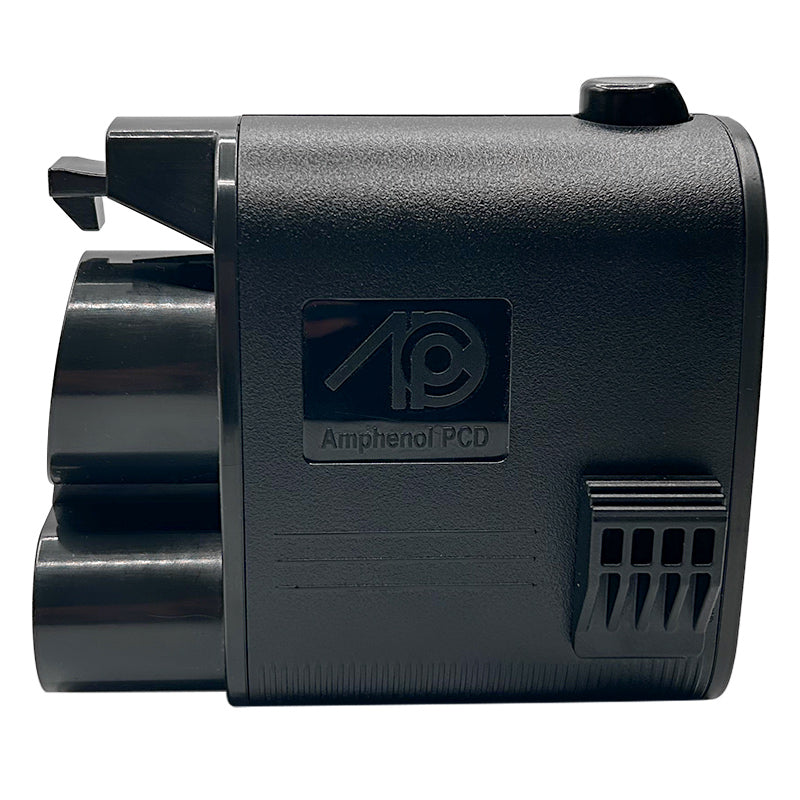

Amphenol PCD Charging Adapter - NACS to CCS1
NACS to CCS1 Adapter
Amphenol PCD Charging Adapter - NACS to CCS1
NACS to CCS1 Adapter
| Model: | HVCONT1001 |
| Current Rate: | Air cooling 380A rated Liquid cooling 500A@25min 600A@10min boosted mode |
| Voltage Rate: |
Power 1000VDC |
| Operation Temp: | -40 to 105°C |
| Ambient Temp: | -40 to 50 °C |
| Durability: | 10,000 cycles |
|
Waterproof: |
Type 3S mated, IP67 Enclosure |
| Fire Classification: | V0 |
| Product Specification: | UL2252 |
|
Temperature Switch: |
Switch off when the temperature exceeds 90°C |
|
Locking Mechanism: |
A special mechanism can prevent the adapter from being unplugged during the charging process, thereby effectively preventing the possibility of hot plugging |
