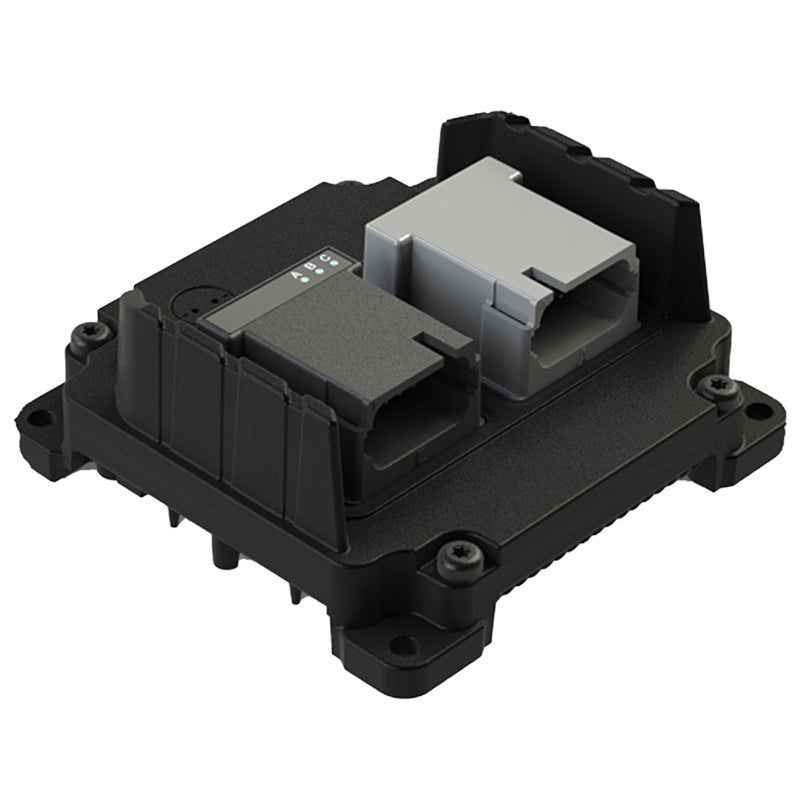

UCONTROL™ MC2-18-6 - 58700010

Available: 2 items in stock
  • Built to Perform in High Heat and High Vibration Areas
  • Easy to Scale Up or Down Within the Hardware Family
  • Features Universal Inputs and Flexible Proportional Outputs
  • Open/Short Circuit Protection and Overcurrent Protection
  • Integrate Quickly with ACE or Program with CODESYS
$1,120.65 CAD

Enovation Controls

FLEXIBLE CONTROLLER FOR HARDWORKING EQUIPMENT

The uControl MC2-18-6 mobile machine controller brings powerful hydraulic control and extensive flexible I/O to rugged applications.

The MC2-18-6 is ready for high-performance fluid power control and 18 total inputs and 6 total outputs. Built to perform in high heat and high vibration areas, uControl mobile controllers deliver extreme durability with precision control. Featuring multiple CAN interfaces, open/short circuit protection, flexible universal inputs and software selectable outputs, uControl mobile controllers are ready and scalable for a variety of equipment needs and applications.

Datasheet (PDF)

Enovation Controls

FLEXIBLE CONTROLLER FOR HARDWORKING EQUIPMENT

The uControl MC2-18-6 mobile machine controller brings powerful hydraulic control and extensive flexible I/O to rugged applications.

The MC2-18-6 is ready for high-performance fluid power control and 18 total inputs and 6 total outputs. Built to perform in high heat and high vibration areas, uControl mobile controllers deliver extreme durability with precision control. Featuring multiple CAN interfaces, open/short circuit protection, flexible universal inputs and software selectable outputs, uControl mobile controllers are ready and scalable for a variety of equipment needs and applications.

Datasheet (PDF)

18 INPUTS
Universal Analog / High Frequency: 4
Universal Analog: 14
6 OUTPUTS (SOFTWARE SELECTABLE)
4A PWM (Feedback): 2
Dual-Range PWM 4A / 0.5 A (Feedback):  4
HARDWARE
CAN 2.0B / J1939: 2 Channels
Sensor Supply: (2) 400mA max @ 5 or 10 VDC
[Software Selectable Voltage]
Connectors:  J1 (18 pin - E key) - DT16 - 18SE-K004
J2 (18 pin - B key) - DT16-18SB-K004
LED Indicators: (1) Green - Power Status
(1) White - Software Configurable
(1) Blue - Software Configurable
Dimensions: 5.60 x 5.44 x 2.38 in
(142.3 x 138.3 x 60.4 mm)
POWER SUPPLY
Supply Voltage: 6-32 VDC, Nominal Operation @ 12 /24 VDC
Peak Supply Voltage: Power supply supression limits voltage to
55 Volts for duration of Load Dump Event
Maximum Continuous Current: 24A
Idle Current 12/24 VDC: < 200mA @ 12VDC
< 100mA @ 24VDC
Standby Current 12/24 VDC: < 5mA @12VDC
< 2.5mA @ 24VDC
Sleep Pin: Control sleep and wake functionality
ENVIRONMENTAL
Operating Temperature: -40° to +221°F (-40° to +105°C)
Storage Temperature: -40° to +257°F (-40° to +125°C)
Operating Altitude: 0 - 4000 meters
Protection: IP67, IP69K with Protective Boot
Vibration: 5.82 Grms, 8 hours per axis
Shock: ±50G, 6ms
Housing: Cast aluminum housing, soft-gel potted for extreme ruggedness and durability
