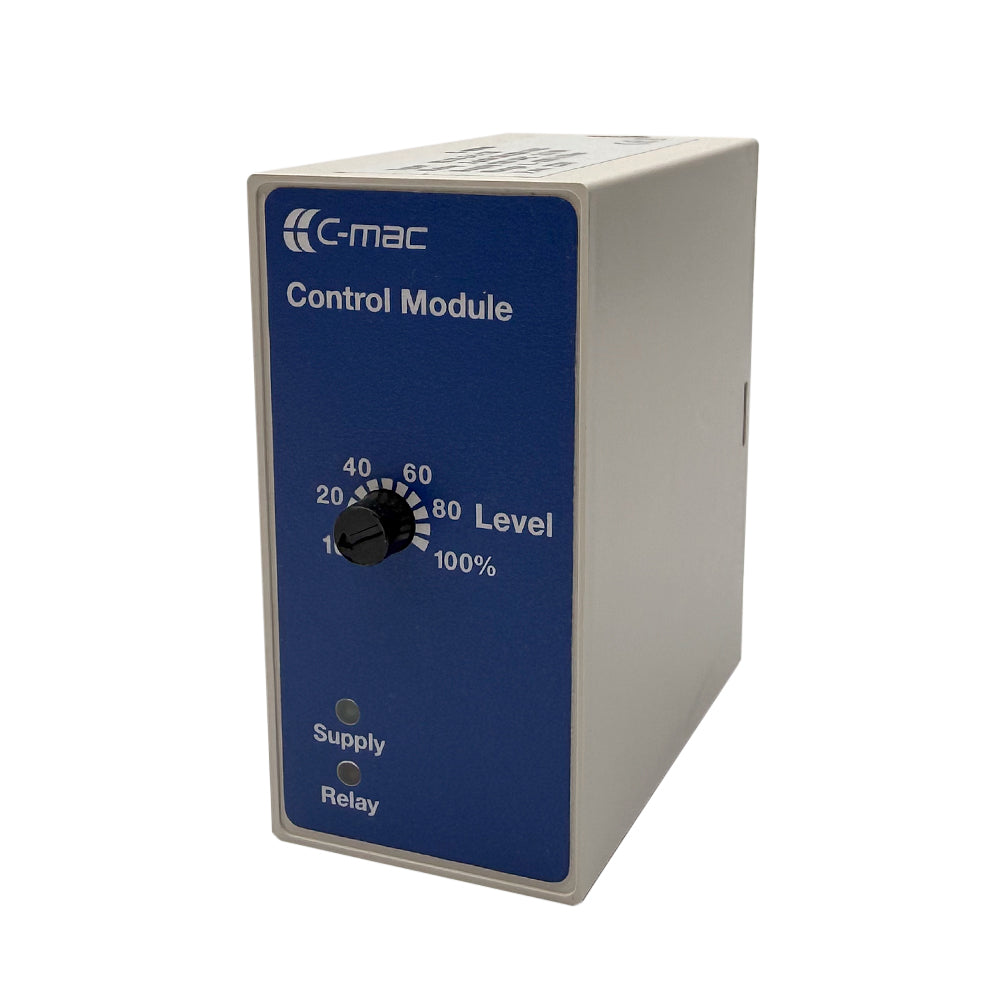

C-mac RL10-2-1-120
- RL10: Universal relay for filling or emptying
- 2 pole 5A/250 VAC
- Level relay for conductive liquids
- Adjustable sensitivity allows operation with a wide range of conductive liquids
- Product SKU: RL10-2-1-120
- Category:Electronic Sensors,New Products
- Contact for high volume orders (25 or more) for special pricing
C-mac Level Relays RL10

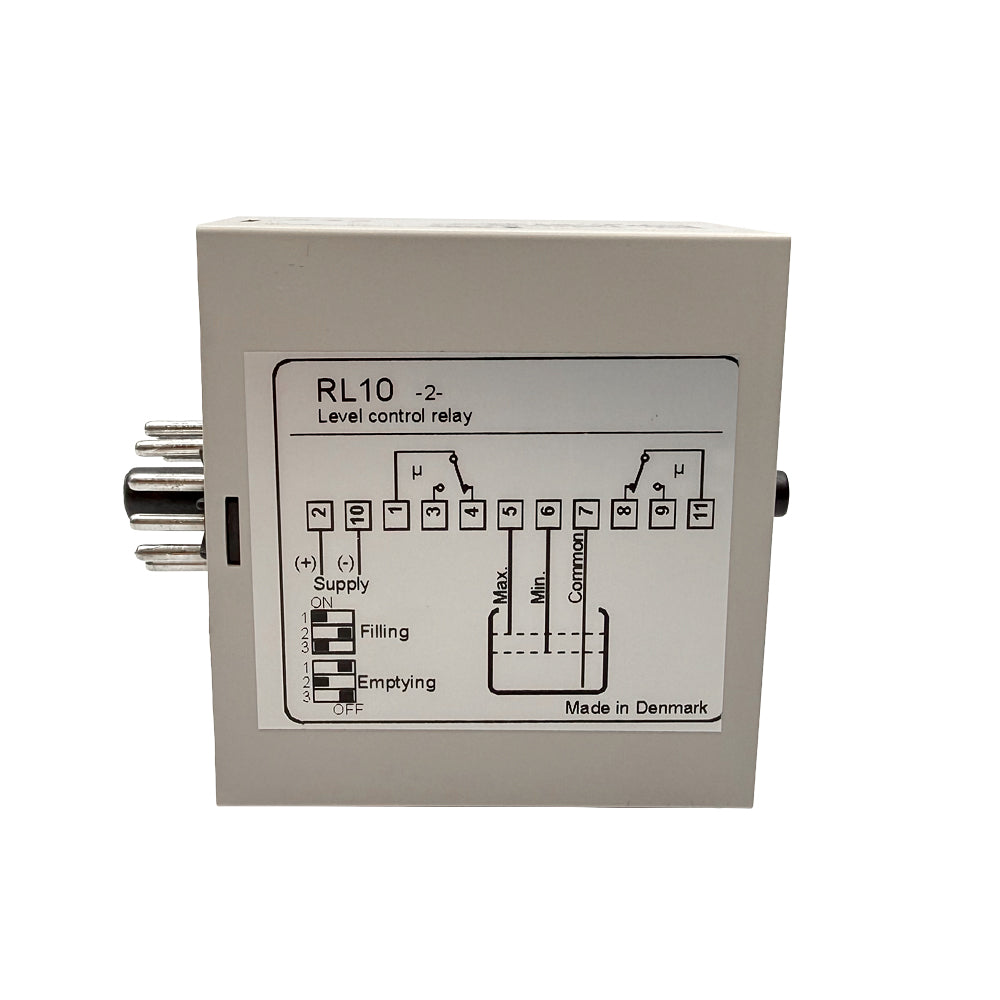

C-mac® level relays, series RL, are made for monitoring and control of the level in conductive liquids. The level is monitored by 1 or 2 electrodes in the liquid
RL10 is supplied with internal oscillator for the signal to the electrodes, which means the module can be used for both AC and DC supply, and furthermore it is possible to adjust the unit to a very high sensitivity, which means it can be used for very clean liquids, i.e. liquids with low conductivity.
C-mac Level Relays RL10
C-mac® level relays, series RL, are made for monitoring and control of the level in conductive liquids. The level is monitored by 1 or 2 electrodes in the liquid
RL10 is supplied with internal oscillator for the signal to the electrodes, which means the module can be used for both AC and DC supply, and furthermore it is possible to adjust the unit to a very high sensitivity, which means it can be used for very clean liquids, i.e. liquids with low conductivity.

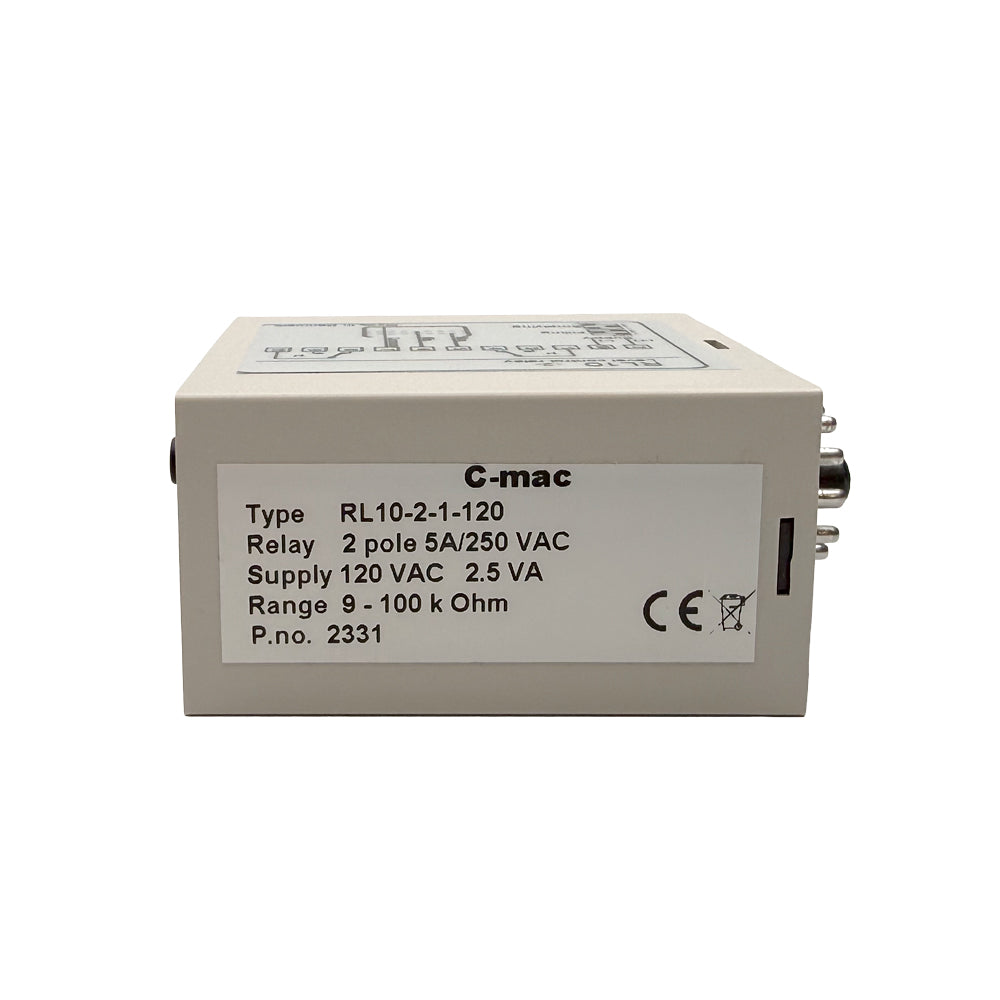

| Model: | RL10-2-1-120 |
| Supply, AC: | 120 VAC |
| Supply Frequency: | 40-70 Hz |
| Variable Supply: | 12-60 VDC or 85-260 VDC (RL10 only) |
| Isolation Voltage: |
Supply - Input - Output: 3.75 kV |
| Supply Voltage, DC: |
24 VDC +/- 10% (RL10 only) Note: With this DC-supply there is no isolation between supply and internal electronics |
| Optional: | 12 – 60 VDC with internal DC/DC converter and galvanic isolation between supply and internal circuits |
| Power Consumption: | 2.5 VA |
| Operation Temperature: | -20°C to +60°C |
| Humidity: | 0 - 90% relative non-condensing |
| Sensor Signal: | 8 VAC / 70Hz, max 1 mA |
| Sensor Cable: | Standard 2- or 3-wire cable Max. 100 m. |
| Adjustments: | Potentiometer, scala 1 tol 10 |
| Indications: | Green LED: Supply voltage connected Red LED: Relay active |
| Maks. Max. Load, Relay: | 1-pole: 8 A-250 VAC 2-pole: 5 A-250 VAC Ohmic load |
