Dies for Rounding Sector-Shaped Copper and Aluminium Conductors
Available: 1 item in stock
- Product SKU: 632-90623
- Category:Tools
- Contact for high volume orders (25 or more) for special pricing
$371.50 CAD
Dies for Rounding Sector-Shaped Copper and Aluminium Conductors
Dies for rounding sector-shaped copper and aluminium conductors (for HPZ80 / hForce - Battery Powered Hydraulic Crimp Tool).
Dies for Rounding Sector-Shaped Copper and Aluminium Conductors
Dies for rounding sector-shaped copper and aluminium conductors (for HPZ80 / hForce - Battery Powered Hydraulic Crimp Tool).
| Part Number: | Stranded Conductor Capacity: | Solid Conductor Capacity: |

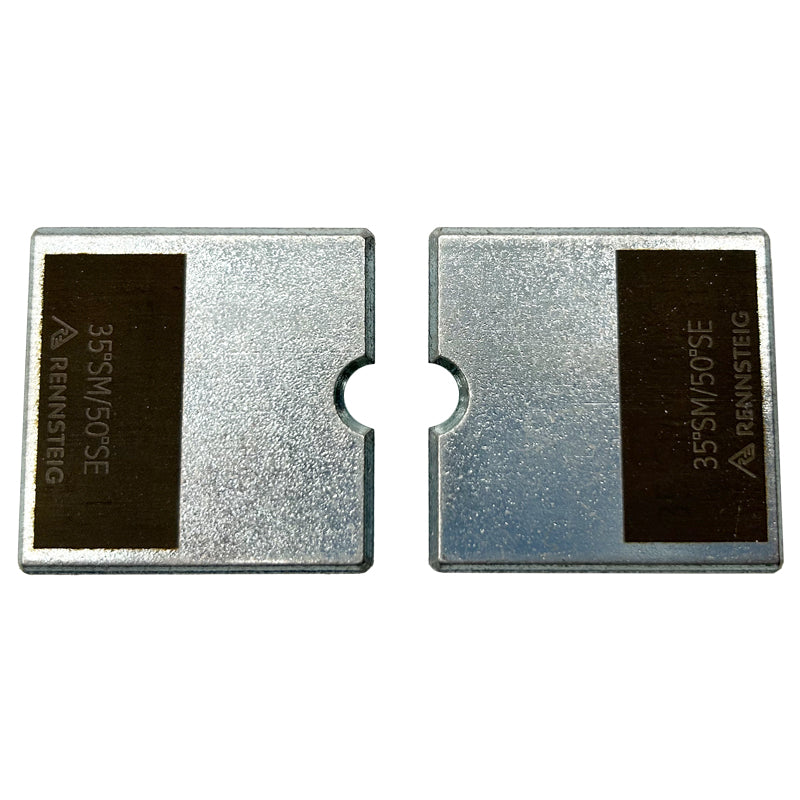

| 632-90623 | 35 SQ-MM | 50 SQ-MM |

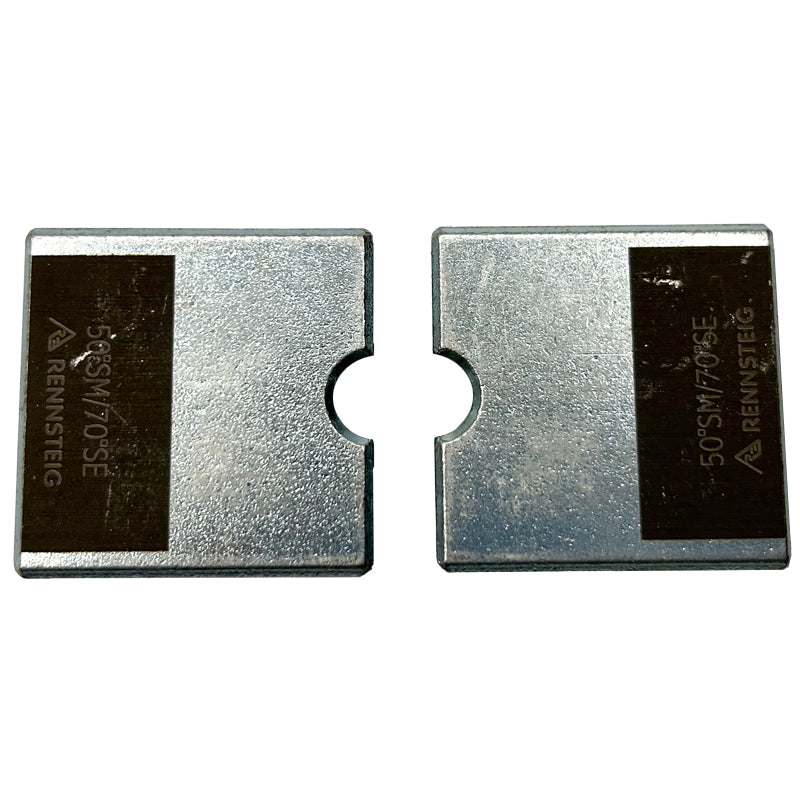

| 632-90624 |
50 SQ-MM |
70 SQ-MM |

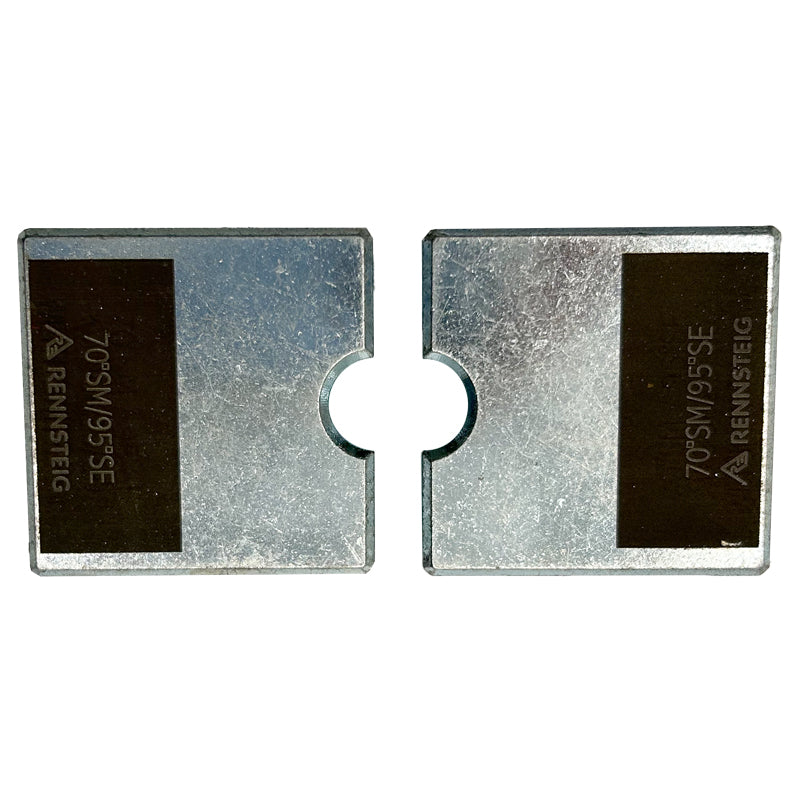

| 632-90625 |
70 SQ-MM |
95 SQ-MM |

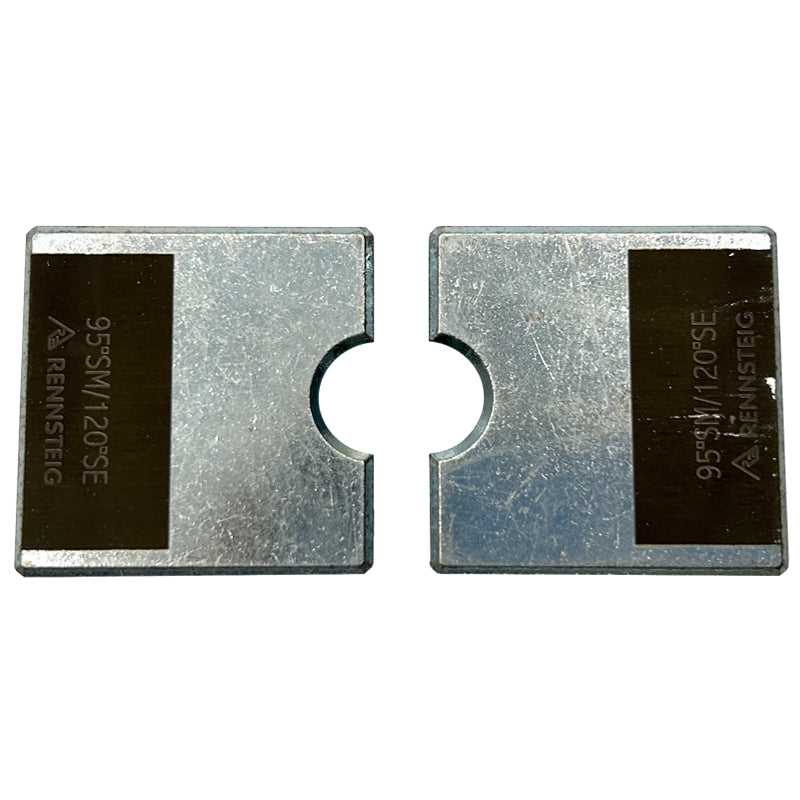

| 632-90626 | 95 SQ-MM | 120 SQ-MM |
