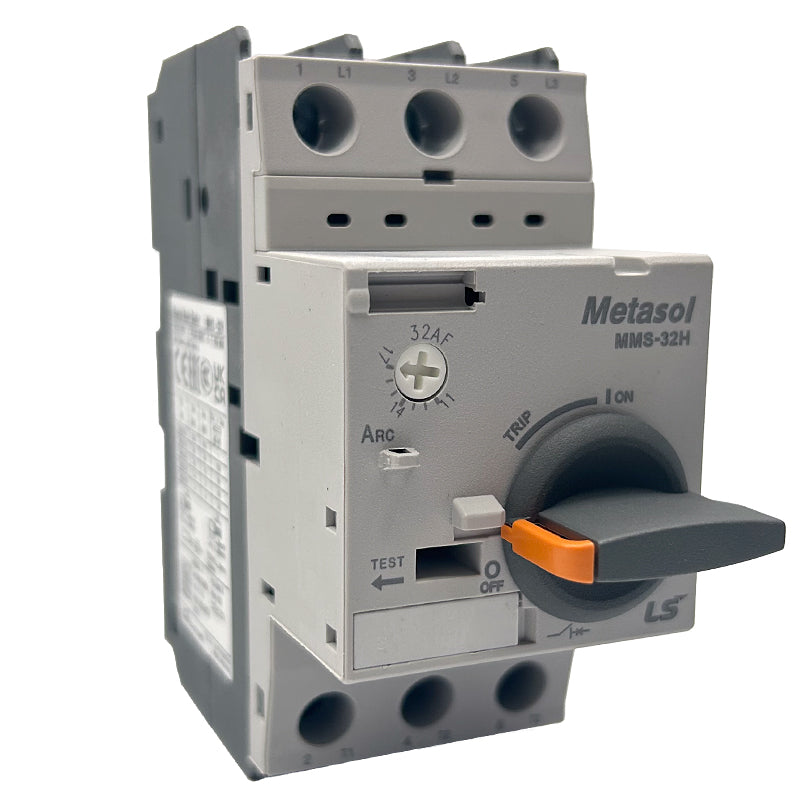

MMS-32H 17A - 0705104700
- Three position operator : On-Off-Trip (Only 100AF is applied)
- Complete range of common accessories
- Handle lock in the Off position
- Class 10 overload trip characteristics
- Trip test
- Finger safe terminal
- Din rail & Screw mounting
- Ready for IE3
- Product SKU: 0705104700
- Category:Motor Control,New Products
- Contact for high volume orders (25 or more) for special pricing
Manual Motor Starters
LS Manual Motor Starters(MMS) is a motor protection product with high performance and reliability. This product has higher technology and expertise than the existing Meta-MEC MMS due to existing overload and phase failure protection functions, upgraded short-circuit capabilities and quality. In addition, all user conditions were met in accordance with IEC and UL standards.
Manual Motor Starters
LS Manual Motor Starters(MMS) is a motor protection product with high performance and reliability. This product has higher technology and expertise than the existing Meta-MEC MMS due to existing overload and phase failure protection functions, upgraded short-circuit capabilities and quality. In addition, all user conditions were met in accordance with IEC and UL standards.
| Model: | MMS-32H 17A Item Number: 0705104700 |
| Breaking Capacity: | High Breaking |
| Handle Type: | Rotary |
| Number of Poles: | 3 |
| Amp Rating: | 17 Amp |
| Rated Operational Voltage (Ue): | Up to 690V |
| Rated Frequency: |
50/60 Hz |
| Rated Insulation Voltage (Ui): | 690V |
| Rated Impulse Voltage (Uimp): | 6kV |
| Mechanical Endurance (Operating): | 100,000 |
| Temperature Compensation (Operation): | -20 ~ +60℃ |
