MINIMSDVF000F

Available: 11 items in stock

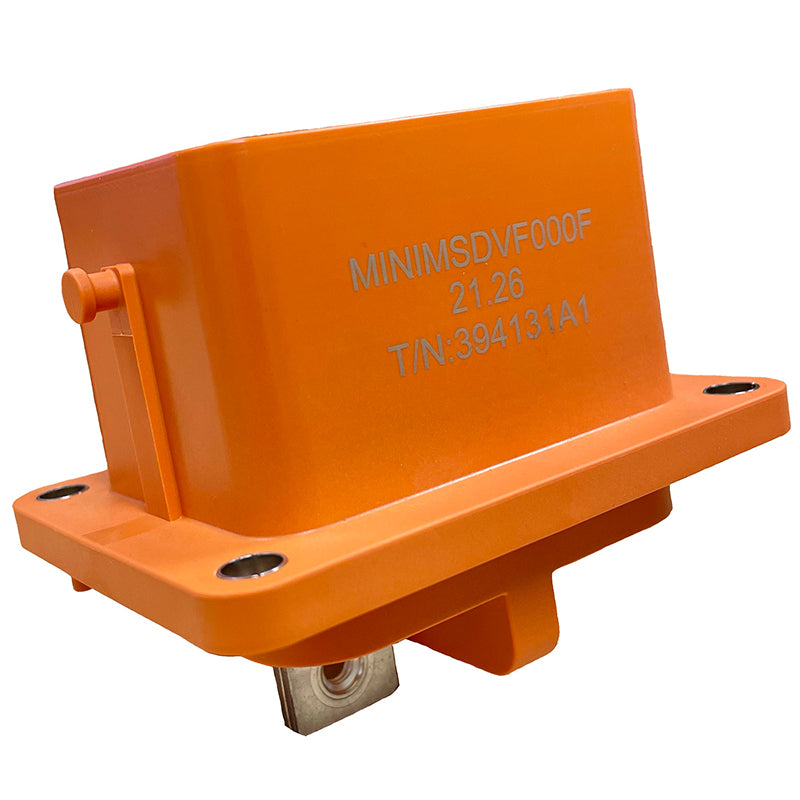

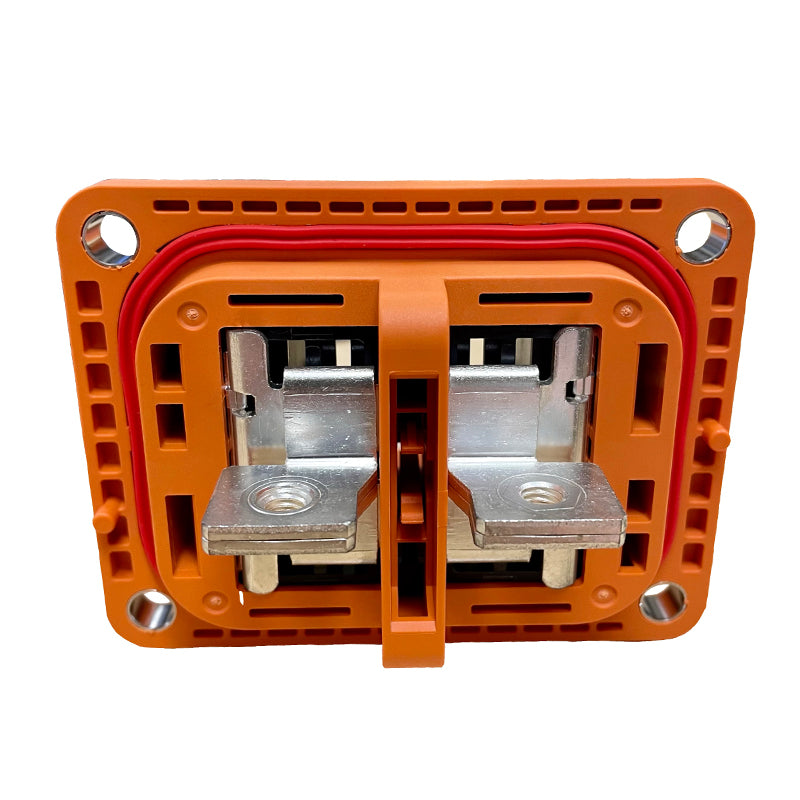

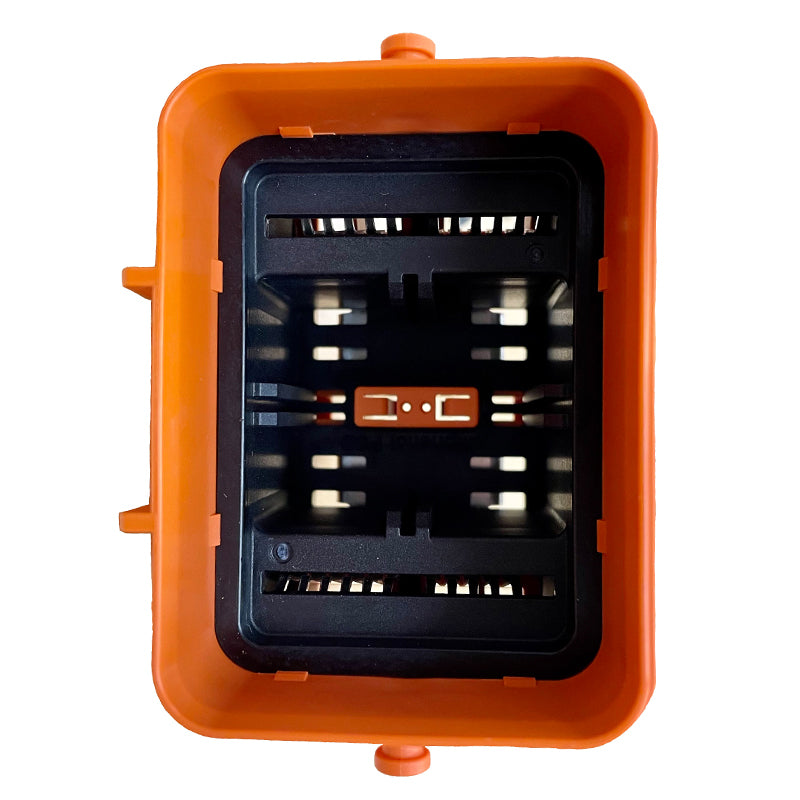

  • Mini MSD Receptacle with Front Mounting
  • Built-in gasket seal, row connection
  • No fuse needed, can directly use the terminal
  • A two-stage lever provides an HVIL time delay
  • 1 x integrated internal HVIL
  • Unique cooling structure
  • Dual-channel design lowers temperature rise
  • No tools required to unmate
  • Various fuse ratings
$86.45 CAD

Mini MSD Connectors

The Excel|mate Mini MSD is a more compact version of our MSD series. It is smaller in size and lower in cost. In addition Mini MSD connectors offers a variety of different fuses.

APPLICATIONS: It is a tool-free solution for disconnecting the internal high voltage battery pack and protecting it from short circuit.

Datasheet (PDF)
Drawing (PDF)

Mini MSD Connectors

The Excel|mate Mini MSD is a more compact version of our MSD series. It is smaller in size and lower in cost. In addition Mini MSD connectors offers a variety of different fuses.

APPLICATIONS: It is a tool-free solution for disconnecting the internal high voltage battery pack and protecting it from short circuit.

Datasheet (PDF)
Drawing (PDF)

Model: MINIMSDVF000F
Fuse Specification: Up to 400A
Rated Current: With Fuse: Current is approximately 1/3 the fuse rating (220A Max)
With Shunt: 220A Max
Rated Voltage: With Fuse: 750V DC
With Shunt: 1500V DC Max
Part Category: MSD Receptacle
Product Type: Automotive Connectors
Mating Cycles: ≥ 50 cycles
Protection Degree: IP67, IP6K9K (mated)
Ambient Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Flammability: UL94V0
Standards: USCAR-2
USCAR-37
LV-215
RoHS
