HVSLS800022A1H6
Categories
Amphenol

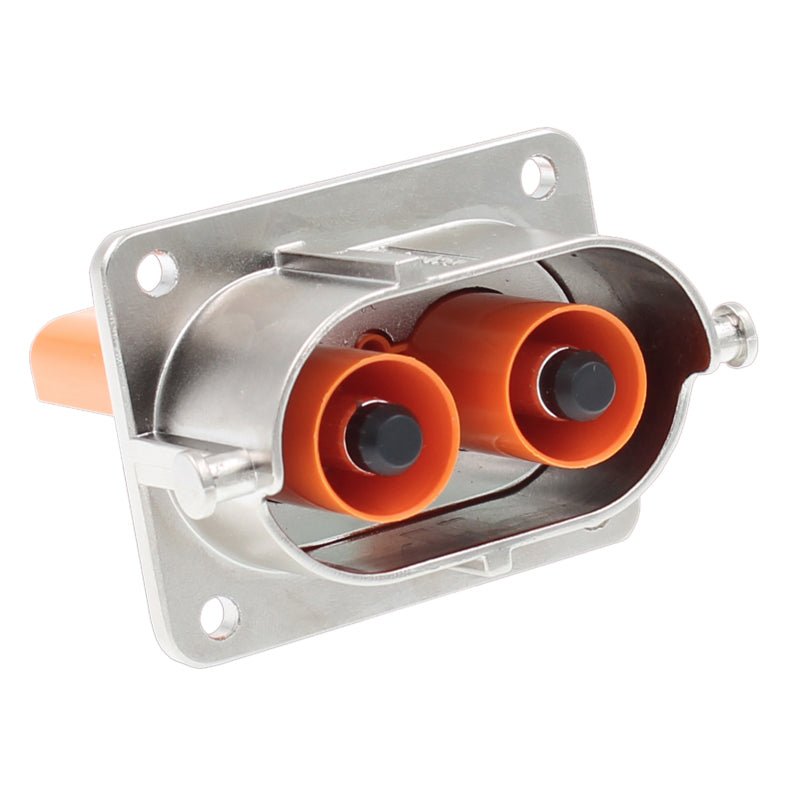

HVSLS800022A1H6

Available: 179 items in stock
  • Receptacle23 Pole
  • Busbar
  • A-coded
  • With HVIL
$69.50 CAD

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Datasheet (PDF)
Drawing (PDF)

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Datasheet (PDF)
Drawing (PDF)

Model: HVSLS800022A1H6
Number of Positions (w/o PE)  2
Rated Voltage: 1000V
Rated Current (40°C): 180A
Contact Diameter: 8,0 mm
IP-Class Mated: IP67 / IP6K9K
Gender:  Male Receptacle
Termination Style: Crimp
High Voltage Interlock Yes
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Automotive Connectors
Max. Wire Gauge: 50
Min. Wire Gauge: 25
Shielding: Yes
RoHS Compliant: Yes
