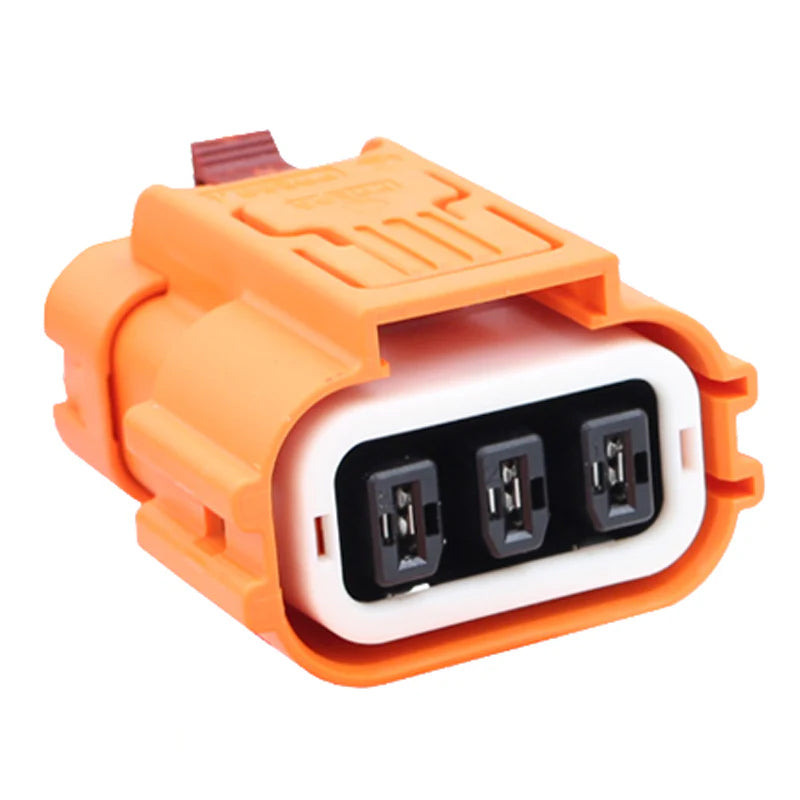

HVSL633063B104I

Available: 100 items in stock
  • Female Cable Connector
  • 3 Pole
  • Straight
  • B-coded
  • 4,00mm²
  • With HVIL
$55.71 CAD

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Drawing (PDF)
Datasheet (PDF)
Assembly Instructions (PDF)

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Drawing (PDF)
Datasheet (PDF)
Assembly Instructions (PDF)

Model: HVSL633063B104I
Number of Positions (w/o PE)  3
Rated Voltage: 800V
Rated Current (40°C): 40A
IP-Class Mated: IP69K
Gender:  Female Cable Connector
Termination Style: Crimp
High Voltage Interlock Yes
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Automotive Connectors
Mating Cycles: 50
Max. Wire Gauge: 4
Min. Wire Gauge: 4
Shielding: Yes
RoHS Compliant: Yes
C310003623S

6.5mm Female Pin (3pcs required per connector) - C310003623S
