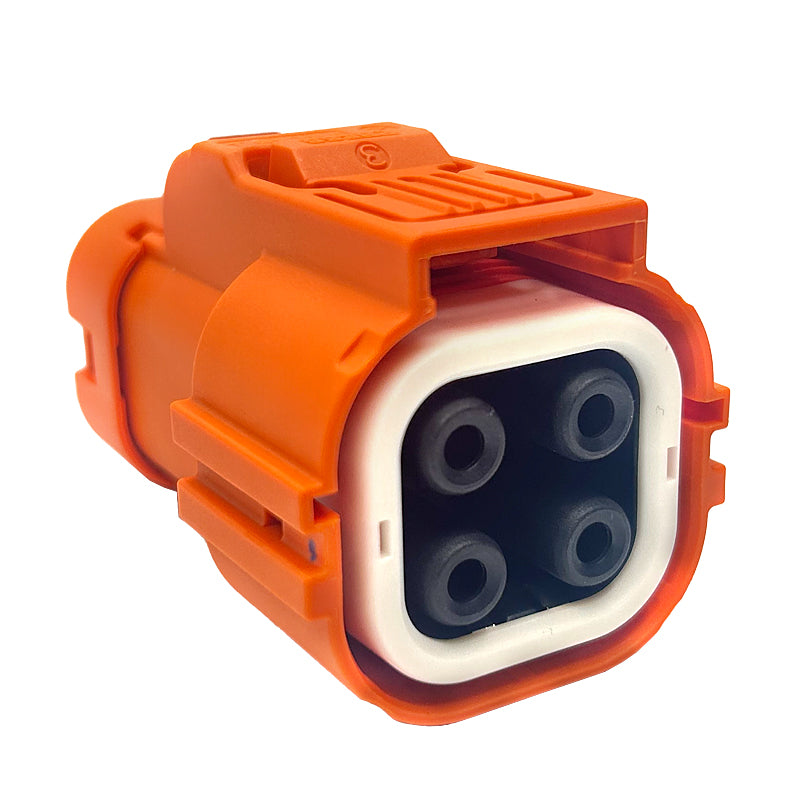

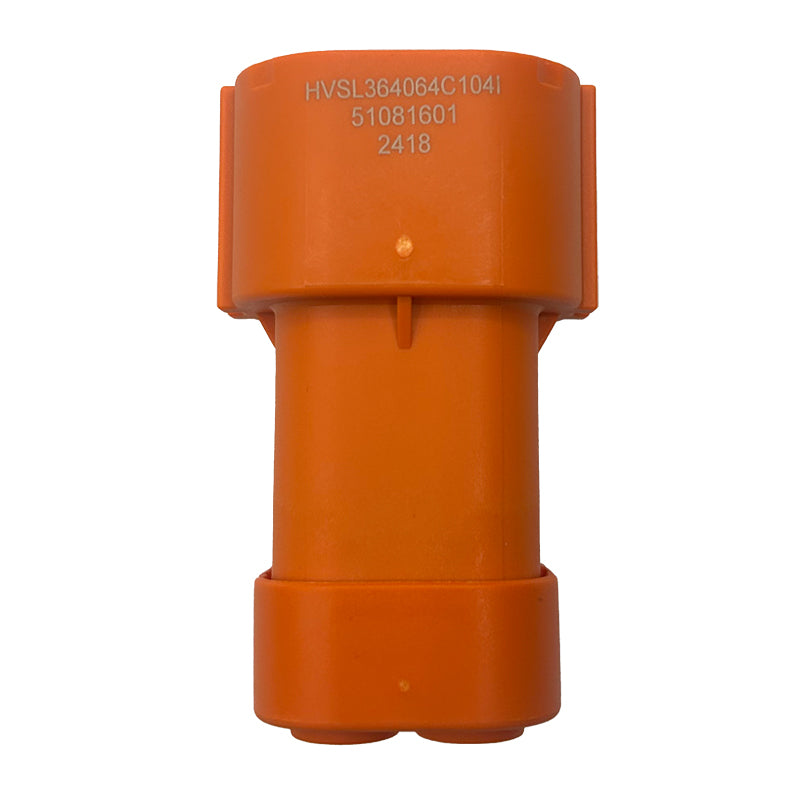

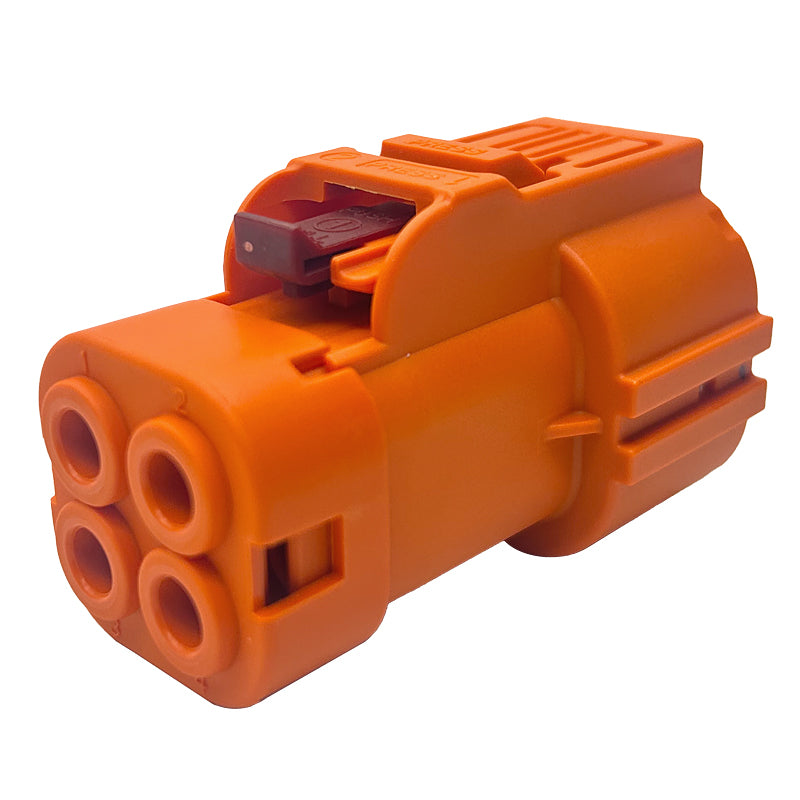

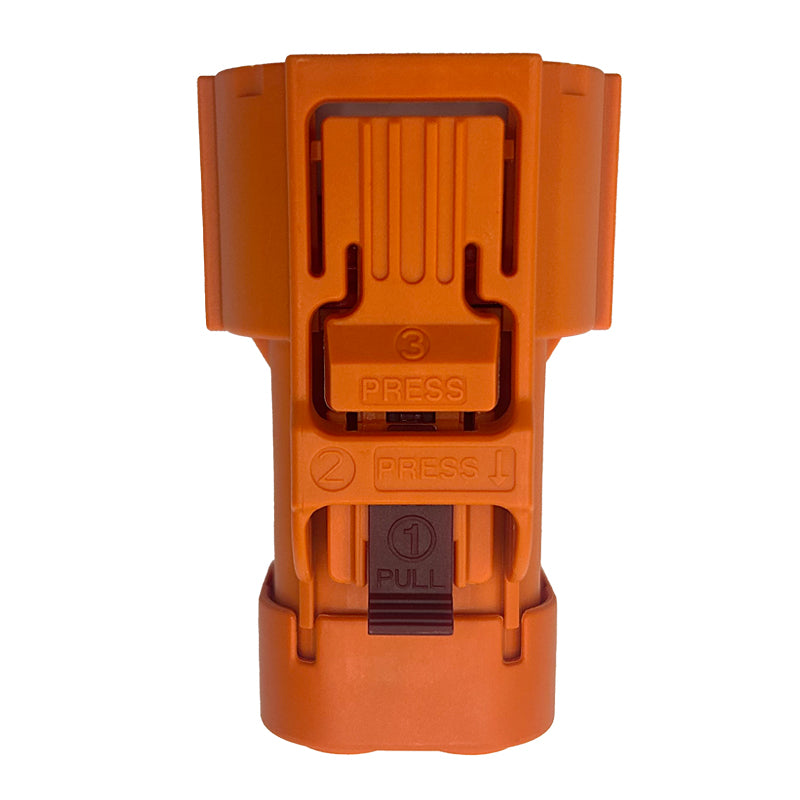

HVSL364064C104I
Categories
Amphenol

HVSL364064C104I

Available: 9 items in stock
  • HVSL364 4 poles
  • Crimp
  • Female Cable Connector
  • 4 mm²
  • With HVIL
  • Alternate Position C
$54.78 CAD

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Datasheet (PDF)
Drawing (PDF)

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Datasheet (PDF)
Drawing (PDF)

Model: HVSL364064C104I
Number of Positions (w/o PE)  4
Rated Voltage: 1000V
Rated Current (40°C): 32A
IP-Class Mated: IP67K
Gender:  Female Cable Connector
Termination Style: Crimp
High Voltage Interlock Yes
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Automotive Connectors
Max. Wire Gauge: 4
Min. Wire Gauge: 2.5
Shielding: Yes
RoHS Compliant: Yes
C310026005

HVSL364 Power Contact for Receptacle 4,0mm² - C310026005
