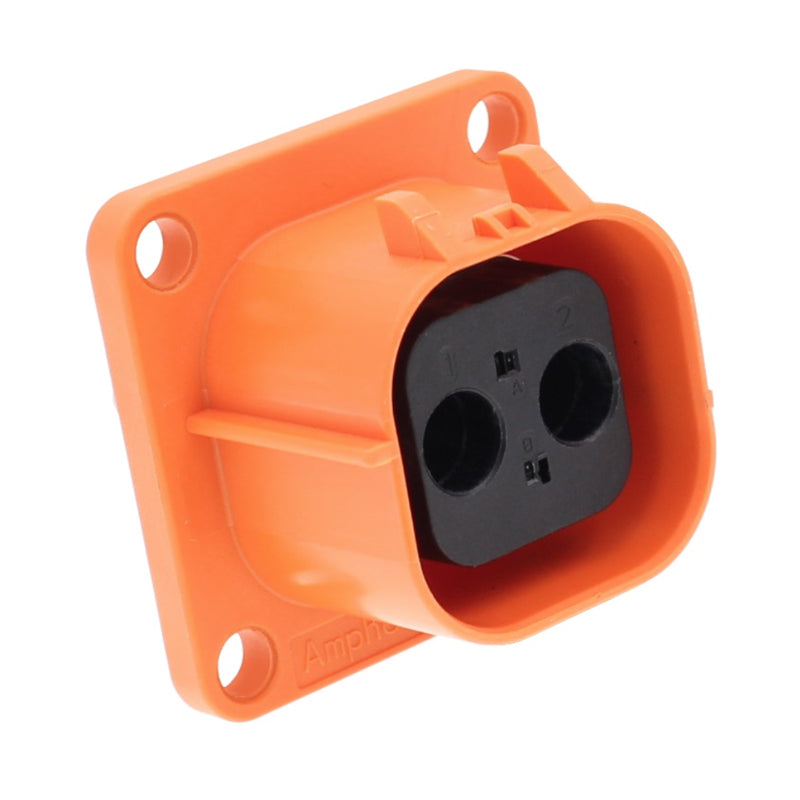

HVSL362022A

Available: 14 items in stock
  • HVSL362 Receptacle 2 Pole
  • Crimp
  • A-coded
$19.25 CAD

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Datasheet (PDF)
Drawing (PDF)

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Datasheet (PDF)
Drawing (PDF)

Model: HVSL362022A
Number of Positions (w/o PE)  2
Rated Voltage: 1000V
Rated Current (40°C): 95A
IP-Class Mated: IP67K
Gender:  Male Receptacle
Termination Style: Crimp
High Voltage Interlock Yes
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Automotive Connectors
Max. Wire Gauge: 16
Min. Wire Gauge: 6
Shielding: Yes
RoHS Compliant: Yes
C3100235011 P03BS00081 C310003614S

HVSL362 Power Contact for Receptacle 6,0 and 10,0mm² - C3100235011

HVSL362 Power Contact for Receptacle 16mm² - P03BS00081

HVSL362 HVIL Contact for Receptacle - C310003614S
