HVSL1400062A195
Categories
Amphenol

HVSL1400062A195

Available: 4 items in stock

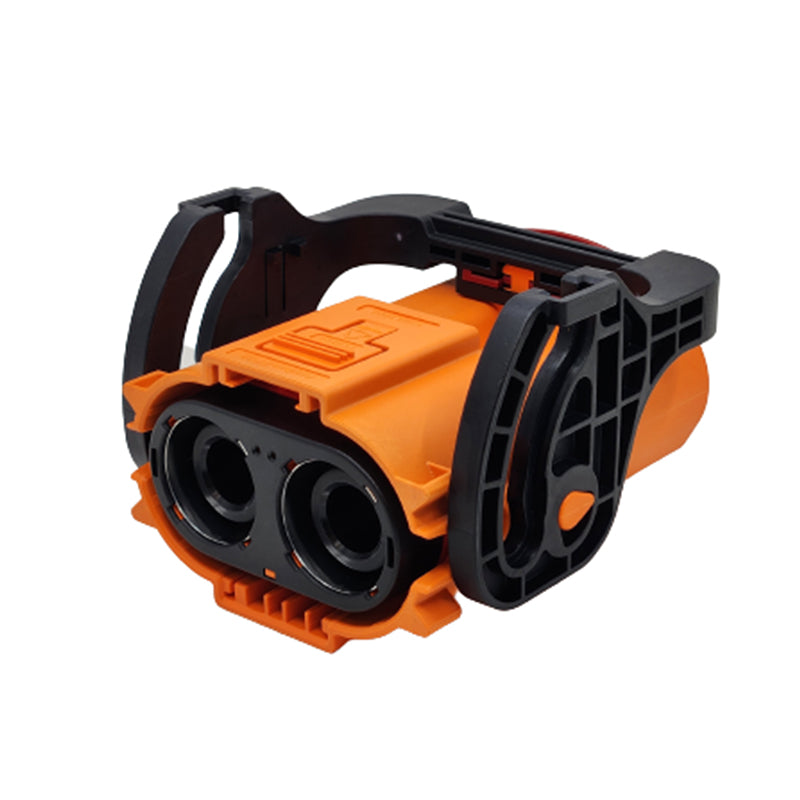

  • HVSL 1400 2 Ways Plug
  • Straight
  • A-coded
  • 95 mm²
  • HVIL
$213.19 CAD

High Voltage Safety Lock (HVSL) Connectors

The new high power connectors Excel|Mate HVSL 1400 are built for various EV applications. The protection class of IP67 / IP6K9K / IP2XB guarantees a secure connection under harsh environmental conditions. HVSL 1400 is offering a design for wire gauges from 70 up to 120 mm², current carrying capacity up to 430 A and 1000V DC.

Drawing (PDF)
Datasheet (PDF)

High Voltage Safety Lock (HVSL) Connectors

The new high power connectors Excel|Mate HVSL 1400 are built for various EV applications. The protection class of IP67 / IP6K9K / IP2XB guarantees a secure connection under harsh environmental conditions. HVSL 1400 is offering a design for wire gauges from 70 up to 120 mm², current carrying capacity up to 430 A and 1000V DC.

Drawing (PDF)
Datasheet (PDF)

Model: HVSL1400062A195
Number of Positions (w/o PE)  2
Rated Voltage: 1000V
Rated Current (40°C): 370A
IP-Class Mated: IP67 / IP6K9K
Gender:  Female Cable Connector
Termination Style: Crimp
Housing:  Plastic
High Voltage Interlock Yes
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 40 C
Product Type: Power Connector
Market: Electric Vehicle
Max. Wire Gauge: 95
Min. Wire Gauge: 95
Shielding: Yes
RoHS Compliant: Yes
