HVSL1400022A1D8S6

Available: 2 items in stock

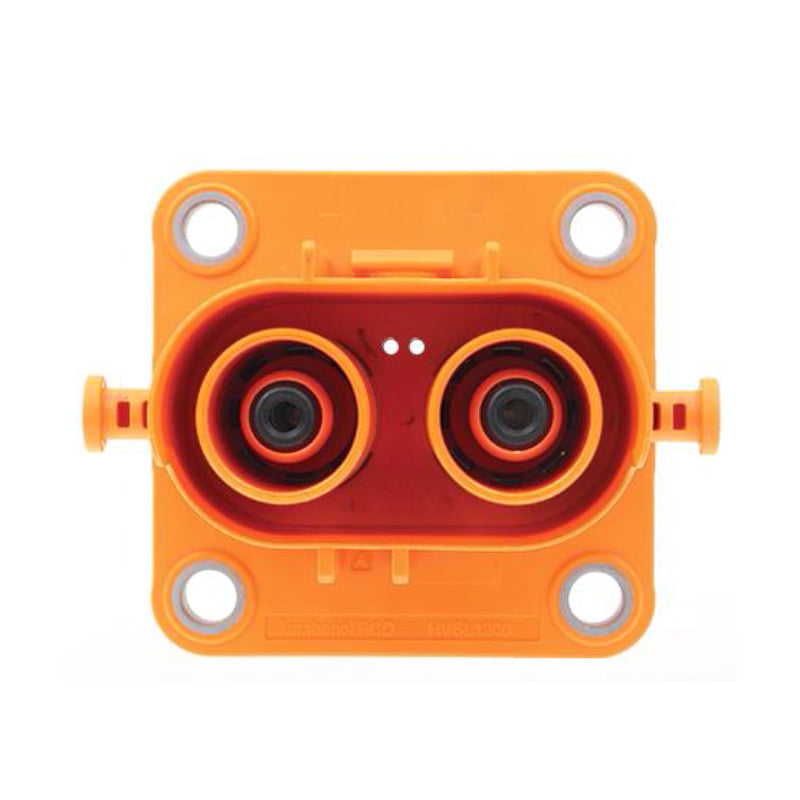

  • HVSL 1400 2 Ways Receptacle
  • A-coded
  • Straight Threas
  • HVIL
$131.18 CAD

High Voltage Safety Lock (HVSL) Connectors

The new high power connectors Excel|Mate HVSL 1400 are built for various EV applications. The protection class of IP67 / IP6K9K / IP2XB guarantees a secure connection under harsh environmental conditions. HVSL 1400 is offering a design for wire gauges from 70 up to 120 mm², current carrying capacity up to 430 A and 1000V DC.

Drawing (PDF)
Datasheet (PDF)

High Voltage Safety Lock (HVSL) Connectors

The new high power connectors Excel|Mate HVSL 1400 are built for various EV applications. The protection class of IP67 / IP6K9K / IP2XB guarantees a secure connection under harsh environmental conditions. HVSL 1400 is offering a design for wire gauges from 70 up to 120 mm², current carrying capacity up to 430 A and 1000V DC.

Drawing (PDF)
Datasheet (PDF)

Model: HVSL1400022A1D8S6
Number of Positions (w/o PE)  2
Rated Voltage: 1000V
Rated Current (40°C): 430A
IP-Class Mated: IP67 / IP6K9K
Gender:  Male Receptacle
Termination Style: Other
High Voltage Interlock Yes
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 40 C
Product Type: Automotive Connectors
Max. Wire Gauge: 120
Min. Wire Gauge: 70
Shielding: Yes
RoHS Compliant: Yes
