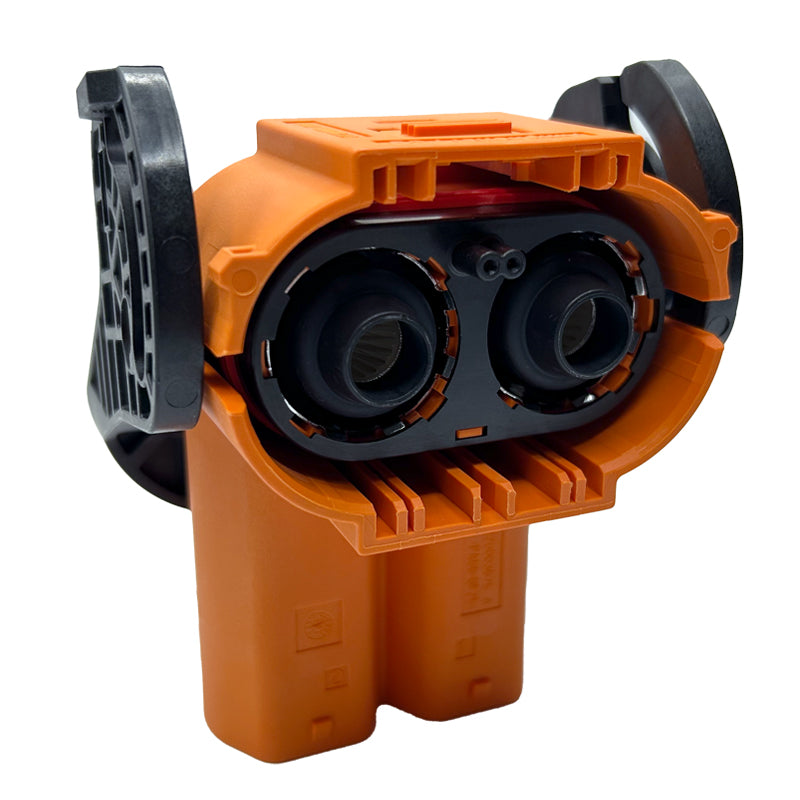

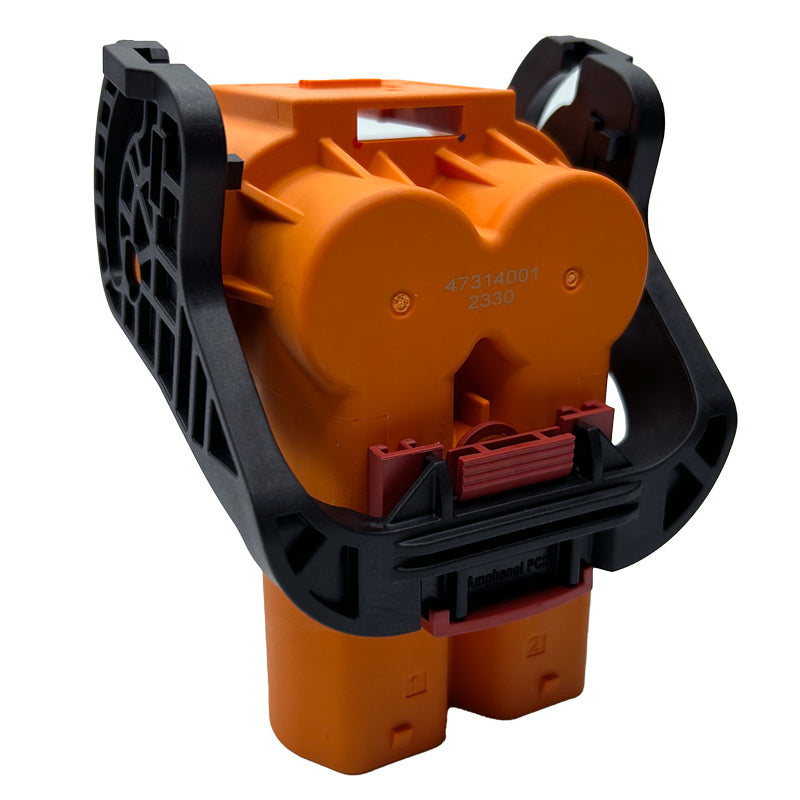

HVSL1000082A170

Available: Out of Stock
  • HVSL 1000 2 Ways Right Angle Plug with HVIL
  • A-coded
  • 70,00mm²
$211.92 CAD

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Drawing (PDF)
Datasheet (PDF)

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Drawing (PDF)
Datasheet (PDF)

Model: HVSL1000082A170
Number of Positions (w/o PE)  2
Rated Voltage: 1000V
Rated Current (40°C): 250A
Contact Diameter: 10,0 mm
IP-Class Mated: IP69K
Gender:  Female Cable Connector
Termination Style: Crimp
Housing:  Plastic
High Voltage Interlock Yes
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Connectors
Product Category: Automotive Connectors
Mating Cycles: 50
Max. Wire Gauge: 70
Min. Wire Gauge: 70
Shielding: Yes
RoHS Compliant: Yes
