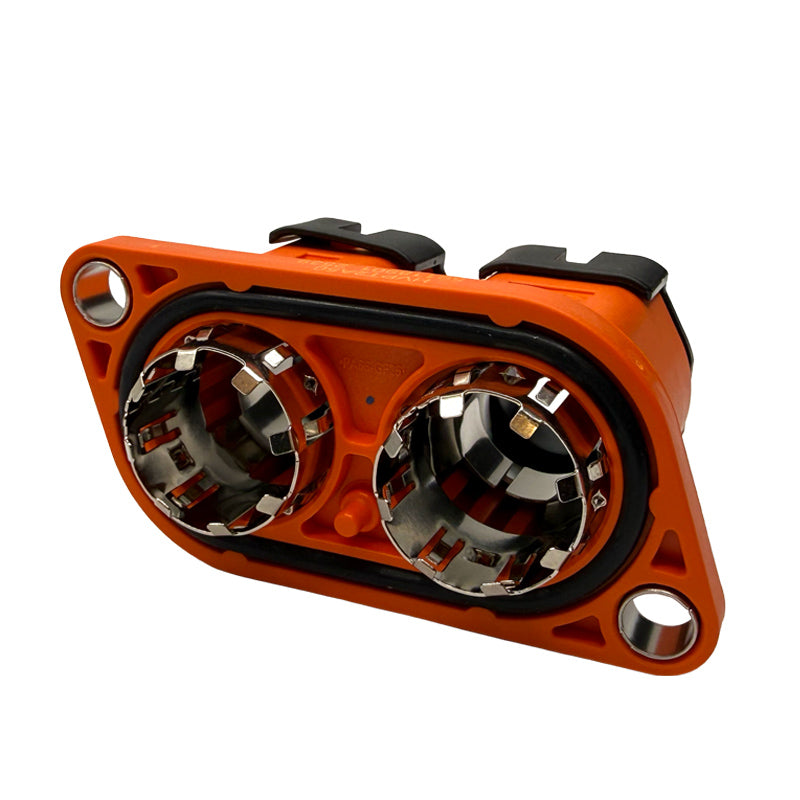

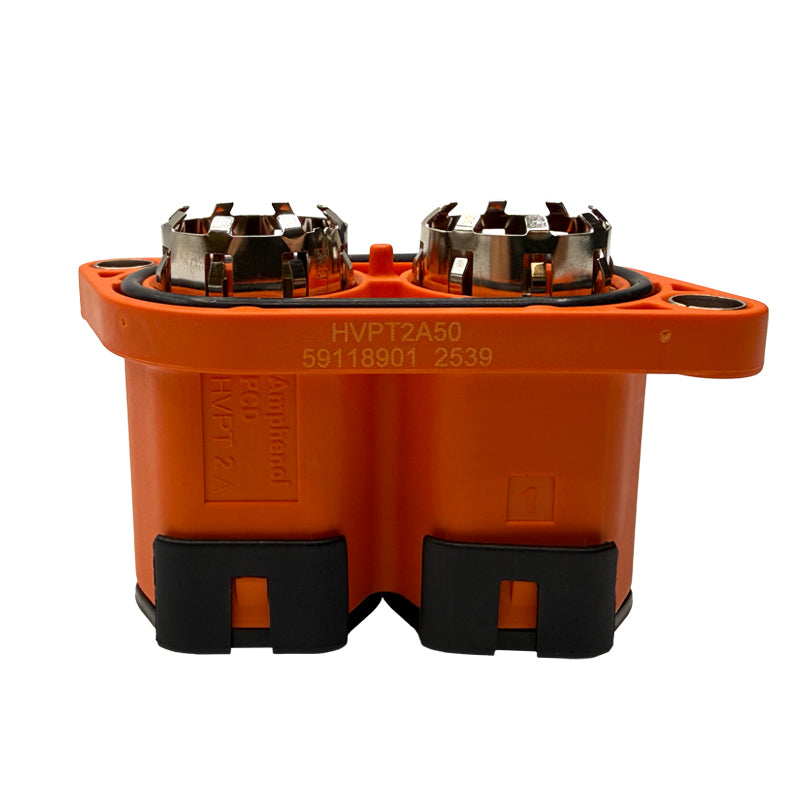

HVPT2A50
![HVPT2A50-2]()
![HVPT2A50-1]()
![HVPT2A50]()
HVPT2A50
Available: 25 items in stock
- HVPT 2 Pole
- A-coded
- 50mm2
- Product SKU: HVPT2A50
- Category:EV Connectors,New Products
- Contact for high volume orders (25 or more) for special pricing
$29.61 CAD
HVPT High Voltage Connectors
HVPT Pass-Through, which is equipped with plastic housing and cable gland, provides a reliable high voltage connection. IP67 rated, light in weight and easy to install, it offers a good price-quality ratio. Multiple coding positions are available. 1 to 3 positions, cable size: 25 to 70mm2 shielded wires.
HVPT High Voltage Connectors
HVPT Pass-Through, which is equipped with plastic housing and cable gland, provides a reliable high voltage connection. IP67 rated, light in weight and easy to install, it offers a good price-quality ratio. Multiple coding positions are available. 1 to 3 positions, cable size: 25 to 70mm2 shielded wires.
| Model: | HVPT2A50 |
| Current Rating: | 180 A |
| Number of Positions | 2 |
| Termination Style: | Crimp |
| Rated Voltage: | 1000V |
| Gender: | Male |
| Housing: | Polyamide (PA) |
| Wire Gauge Max: | 1/0 AWG |
| IP Rating: | IP67 / IP69K |
| Maximum Operating Temperature: | + 125 C |
| Minimum Operating Temperature: | - 40 C |
| Product Type: | Heavy Duty Power Connector |
