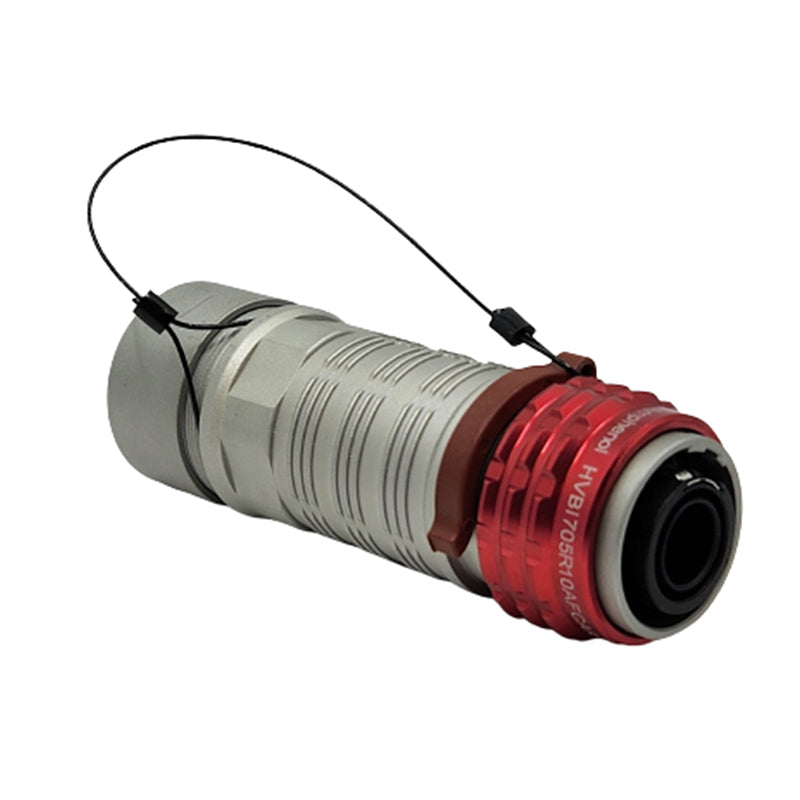

HVBI705R10AFCARDFG50L0000
Categories
Amphenol

HVBI705R10AFCARDFG50L0000

Available: 141 items in stock
  • Female Cable Connector
  • 1 Pole
  • Straight
  • IP67
  • 50,00mm²
  • A-coded
  • Cable Not Included
$67.91 CAD

HVBI Circular Automotive Connectors

Amphenol PCD Shenzhen HVBI Circular Automotive Connectors are a high-quality, high voltage electric vehicle (EV) solution. The connectors are powered by Amphenol Radsok technology that provides high amperages in smaller spaces, high reliability, high current ratings, low mating force, and high durability. The EMI shielded HVBI connectors utilize a push-pull high voltage interlock loop (HVIL) locking system with an audible “click” requiring no tool for unmating. These high voltage connectors are easy to install in limited spaces and are RoHS Compliant.

Datasheet (PDF)
Drawing (PDF)

HVBI Circular Automotive Connectors

Amphenol PCD Shenzhen HVBI Circular Automotive Connectors are a high-quality, high voltage electric vehicle (EV) solution. The connectors are powered by Amphenol Radsok technology that provides high amperages in smaller spaces, high reliability, high current ratings, low mating force, and high durability. The EMI shielded HVBI connectors utilize a push-pull high voltage interlock loop (HVIL) locking system with an audible “click” requiring no tool for unmating. These high voltage connectors are easy to install in limited spaces and are RoHS Compliant.

Datasheet (PDF)
Drawing (PDF)

Model: HVBI705R10AFCARDFG50L0000
Number of Positions (w/o PE)  1
Rated Voltage: 1000V
Rated Current (40°C): 250A
IP-Class Mated: IP67K
Contact Diameter:  10.0 mm
Gender:  Female
Part Category Female Cable Connector
Termination Style: Crimp
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Automotive Connectors
Mating Cycles: 200
Max. Wire Gauge: 50
Min. Wire Gauge: 50
Shielding: Yes
RoHS Compliant: Yes
