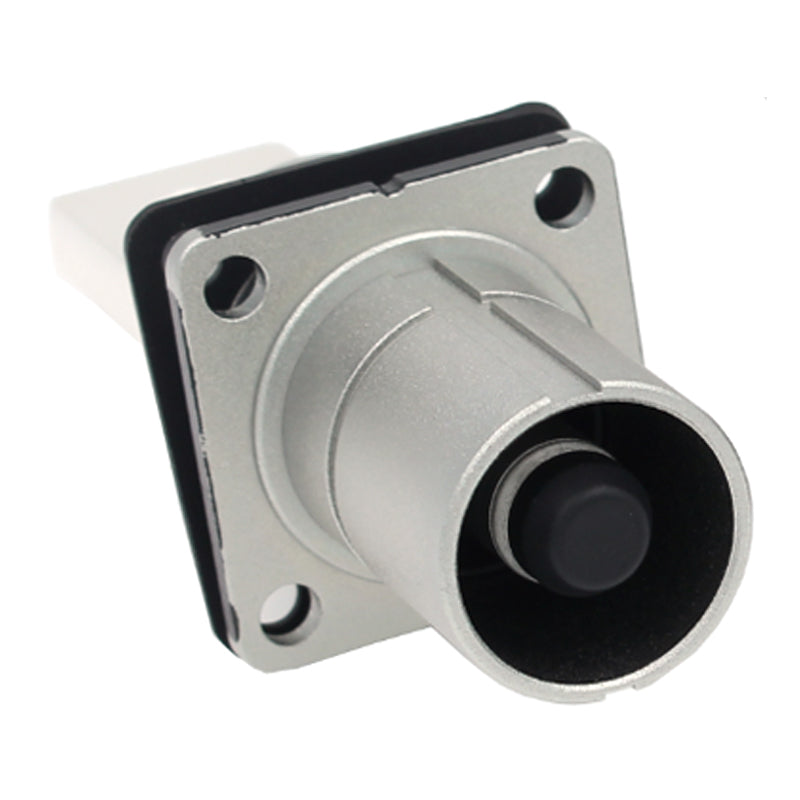

HVBI002R6AMHCYL
Categories
Amphenol

HVBI002R6AMHCYL

Available: 25 items in stock
  • Male panel connector
  • 1 pole
  • Straight
  • IP67
  • C-coded
$40.19 CAD

HVBI Circular Automotive Connectors

Amphenol PCD Shenzhen HVBI Circular Automotive Connectors are a high-quality, high voltage electric vehicle (EV) solution. The connectors are powered by Amphenol Radsok technology that provides high amperages in smaller spaces, high reliability, high current ratings, low mating force, and high durability. The EMI shielded HVBI connectors utilize a push-pull high voltage interlock loop (HVIL) locking system with an audible “click” requiring no tool for unmating. These high voltage connectors are easy to install in limited spaces and are RoHS Compliant.

Datasheet (PDF)
Drawing (PDF)

HVBI Circular Automotive Connectors

Amphenol PCD Shenzhen HVBI Circular Automotive Connectors are a high-quality, high voltage electric vehicle (EV) solution. The connectors are powered by Amphenol Radsok technology that provides high amperages in smaller spaces, high reliability, high current ratings, low mating force, and high durability. The EMI shielded HVBI connectors utilize a push-pull high voltage interlock loop (HVIL) locking system with an audible “click” requiring no tool for unmating. These high voltage connectors are easy to install in limited spaces and are RoHS Compliant.

Datasheet (PDF)
Drawing (PDF)

Model: HVBI002R6AMHCYL
Number of Positions (w/o PE)  1
Rated Voltage: 1000V
Rated Current (40°C): 120A
IP-Class Mated: IP67
Contact Diameter:  6.0 mm
Gender:  Male
Part Category Male Receptacle
Termination Style: Crimp
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Automotive Connectors
Mating Cycles: 200
Shielding: Yes
RoHS Compliant: Yes
