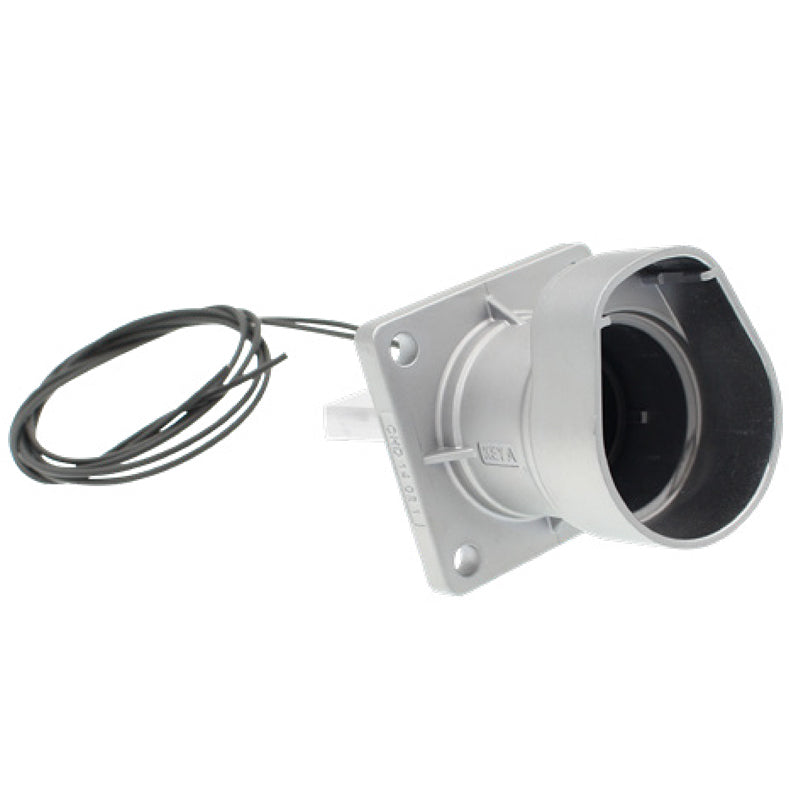

CHD14021B101
- 1 and 2 poles configuration
- EMI shielding
- From 35 to 150 SQMM cable
- IP67 and IP6K9K mated, IP2XB
- IP67 (unmated)
- Right-angled receptacle available
- Salt spray over 500 hours
- Up to 500A
- Voltage rating 1500V DC
- Temp range -40°C to 125°C
- Product SKU: CHD14021B101
- Category:EV Connectors,New Products
- Contact for high volume orders (25 or more) for special pricing
CHD Series Heavy Duty Connectors
Amphenol Industrial CHD Series Heavy Duty Connectors provides an interconnect solution that is designed for high power applications in harsh environment conditions. Available is straight and right-angled receptacle.
These heavy duty power connectors offer waterproof IP grade and salt spray performance over 500 hours that allows the CHD series to challenge tough application environments. The CHD range is completed by shunt plug and receptacle, ideal for safety applications for vehicles with Manual Service Disconnect functionality. These heavy duty connectors with the minimum durability of 50cycles are useful in EV chargers, power distribution unit, on-board chargers and inverters.
CHD Series Heavy Duty Connectors
Amphenol Industrial CHD Series Heavy Duty Connectors provides an interconnect solution that is designed for high power applications in harsh environment conditions. Available is straight and right-angled receptacle.
These heavy duty power connectors offer waterproof IP grade and salt spray performance over 500 hours that allows the CHD series to challenge tough application environments. The CHD range is completed by shunt plug and receptacle, ideal for safety applications for vehicles with Manual Service Disconnect functionality. These heavy duty connectors with the minimum durability of 50cycles are useful in EV chargers, power distribution unit, on-board chargers and inverters.
| Model: | CHD14021B101 |
| Type: | 1 Pin Receptacle |
| Coding: | B coding |
| Cable Entry Angle: | Straight |
| Rated Voltage: |
1500V Max. (DC) |
| Rated Current: | 350A@ Ambient temp. 70°C |
| Shielding: | Yes |
| Sealing: | IP67, IP6K9K (mated) |
| Part Category: | Heavy Duty Power Connectors |
| Temperature Range: | -40°C to 125°C |
| HVIL: | Yes |
| Salt Spray: | 500h Min. |
| Housing: | Aluminum alloy |
| Contacts: | Copper alloy, silver plating |
| Insulator: | Flame-retardant thermoplastic composition |
| Sealing: | Rubber |
| Shielding: | Yes |
