HEV100AM2P2S
Categories
Amphenol

HEV100AM2P2S

Available: 5 items in stock
  • Blind Mating with Floating on X, Y, Z Axes
  • Deviation Self-Correction
  • Collision Prevention
  • High Durability
  • Excellent Physical Shock and Vibration Performance
$149.45 CAD

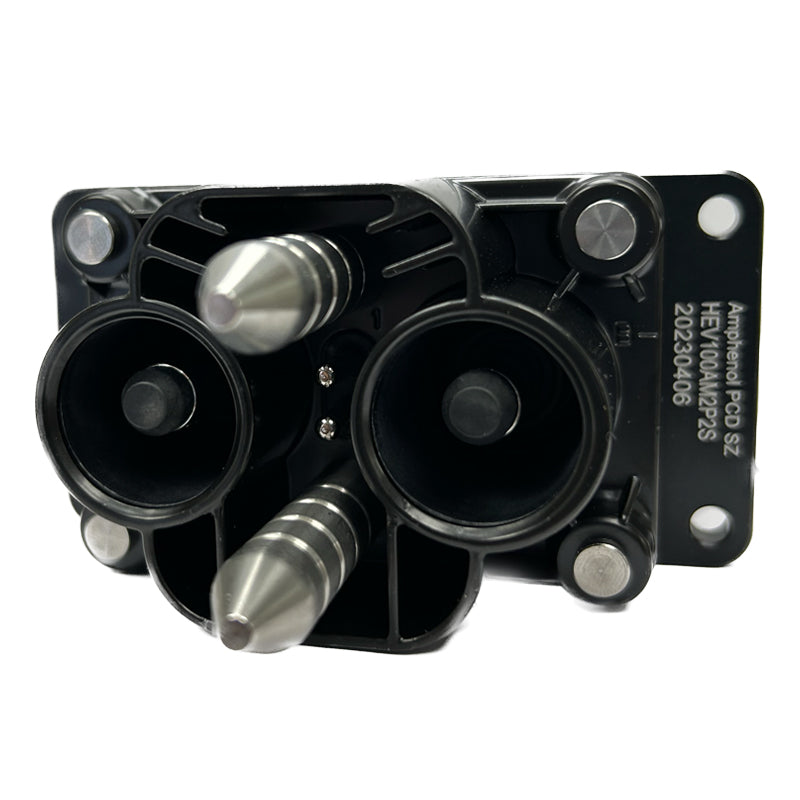

BSM100A - Plug (AM)

BSM series connectors are Battery Swapping Modules with high durability. Their deviation self-correction and collision prevention ensure a fast and precise mating.

  • RADSOK® Technology.
  • Excellent physical shock and vibration.
  • Distinct function for deviation-auto correction, can adjust deviation of X, Y, Z. X and Y direction ±2mm and Z direction ±5mm.

Datasheet (PDF)

BSM100A - Plug (AM)

BSM series connectors are Battery Swapping Modules with high durability. Their deviation self-correction and collision prevention ensure a fast and precise mating.

  • RADSOK® Technology.
  • Excellent physical shock and vibration.
  • Distinct function for deviation-auto correction, can adjust deviation of X, Y, Z. X and Y direction ±2mm and Z direction ±5mm.

Datasheet (PDF)

Model: HEV100AM2P2S
Durability:  ≥ 5000 Mating Cycles
Insertion and Extraction Force: 130N Max
Wire Range:

Signal Contact: 0.5 to 0.75 mm2
Power Contact: 25mm2
Rated Current: Signal Contact: 2A
Power Contact: 100A Max
Rated Voltage: Signal Contact: 12 to 24V
Power Contact: 600V DC
Insulator Resistance: ≥ 200MΩ
Dielectric Withstanding Voltage: 3000V AC
Between Power Contact
Ambient Temperature: -40°C to 70°C
Operating Temperature: -40°C to 125°C
