HEV070AF2P4SF
Categories
Amphenol

HEV070AF2P4SF

Available: 10 items in stock
  • Blind Mating with Floating on X, Y, Z Axes
  • Deviation Self-Correction
  • Collision Prevention
  • High Durability
  • Excellent Physical Shock and Vibration Performance
$79.86 CAD

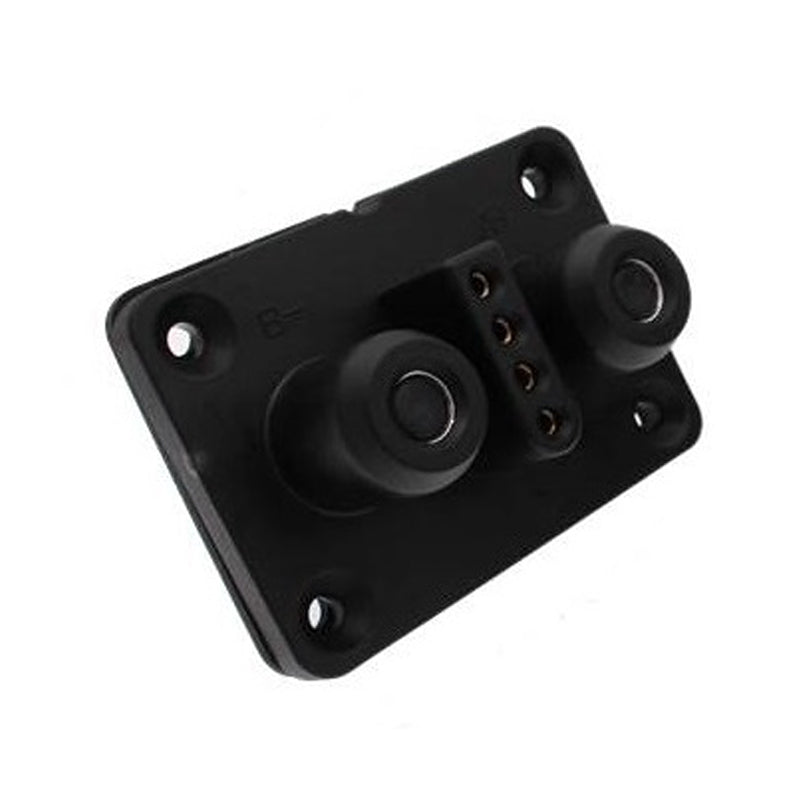

BSM70A - Receptacle (AF)

BSM series connectors are Battery Swapping Modules with high durability. Their deviation self-correction and collision prevention ensure a fast and precise mating.

  • RADSOK® Technology.
  • Excellent physical shock and vibration.
  • Distinct function for deviation-auto correction, can adjust deviation of X, Y, Z. X and Y direction ±2mm and Z direction ±5mm.

Datasheet (PDF)

BSM70A - Receptacle (AF)

BSM series connectors are Battery Swapping Modules with high durability. Their deviation self-correction and collision prevention ensure a fast and precise mating.

  • RADSOK® Technology.
  • Excellent physical shock and vibration.
  • Distinct function for deviation-auto correction, can adjust deviation of X, Y, Z. X and Y direction ±2mm and Z direction ±5mm.

Datasheet (PDF)

Model: HEV070AF2P4SF
Durability:  ≥ 5000 Mating Cycles
Insertion and Extraction Force: 200N max
Wire Range:

Signal Contact: 2.5mm2
Power Contact: 16mm2
Rated Current: Signal Contact: 13A
Power Contact: 70A Max
Rated Voltage: Signal Contact: 12 to 24V
Power Contact: 600V DC
Insulator Resistance: ≥ 200MΩ
Dielectric Withstanding Voltage: 3000V AC
Between Power Contact
Ambient Temperature: -40°C to 70°C
Operating Temperature: -40°C to 125°C
