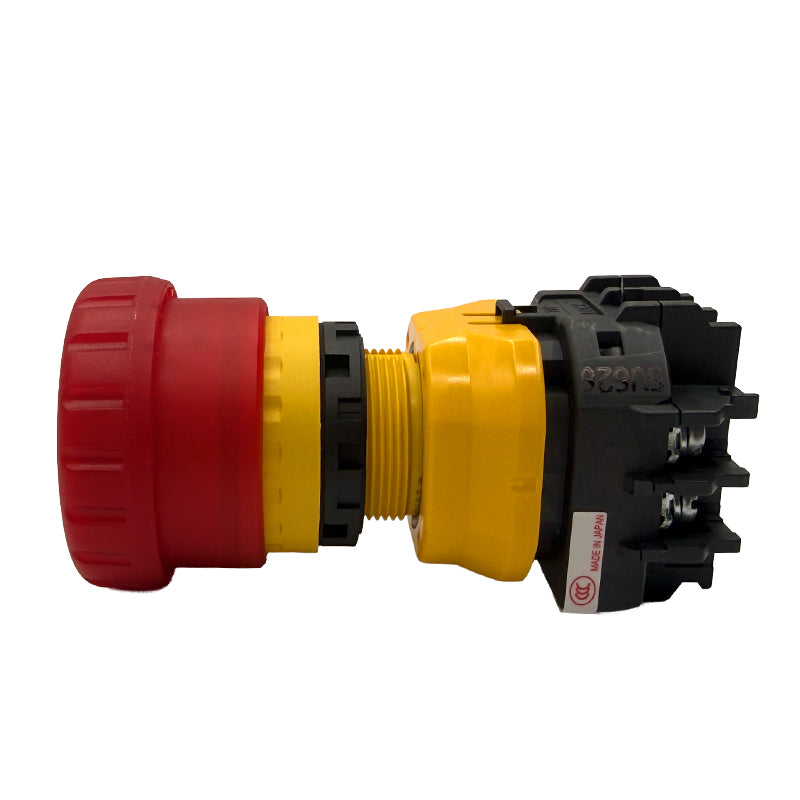

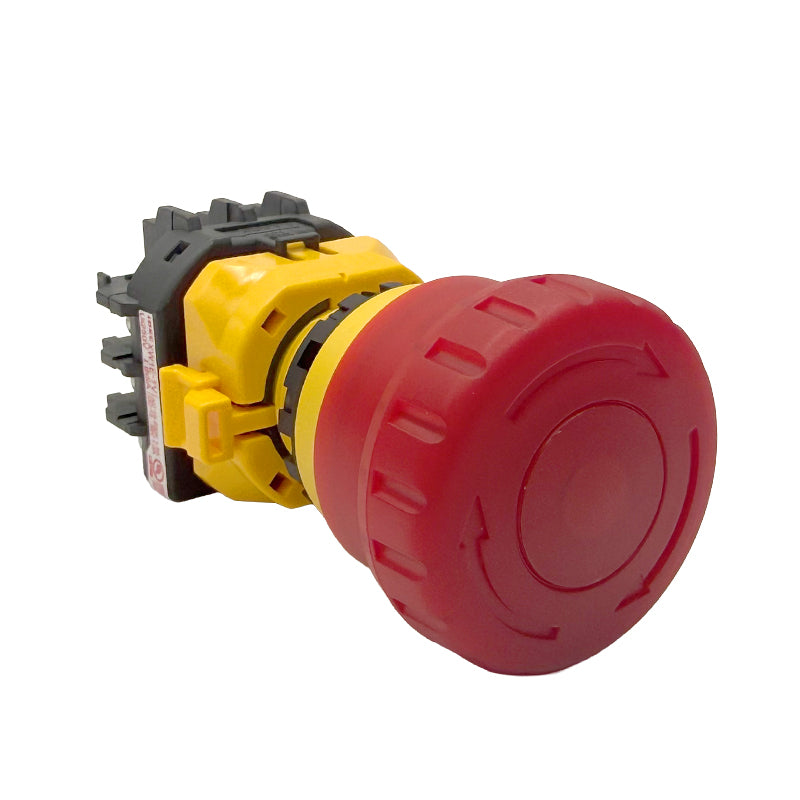

XW1E-TV412Q4M-R
![XW1E-TV412Q4M-R]()
![XW1E-TV412Q4M-R]()
![XW1E-TV412Q4M-R]()
XW1E-TV412Q4M-R
Available: 10 items in stock
- IDEC’s original “safe break action” ensures that the contacts stay open when the contact block is detached from the operator
- Safety-lock mechanism
- 2-in-1: Push-to-lock, Pull/Turn-to-Reset
- Push-ON LED model allows E-Stops to be illuminated only when latched
- Direct Opening Action mechanism
- Product SKU: XW1E-TV412Q4M-R
- Category:Electromechanical Switches,New Products
- Contact for high volume orders (25 or more) for special pricing
$107.54 CAD
XW Series Emergency Stop Switches / E-Stop Switches 22mm
Emergency Stop Switch 3PST-2NC/1NO Panel Mount, Front Illuminated (Red)
XW Series Emergency Stop Switches / E-Stop Switches 22mm
Emergency Stop Switch 3PST-2NC/1NO Panel Mount, Front Illuminated (Red)
| Model: | XW1E-TV412Q4M-R |
| Mounting Type: | Panel Mount, Front |
| Reset Operation: | Pull or Turn |

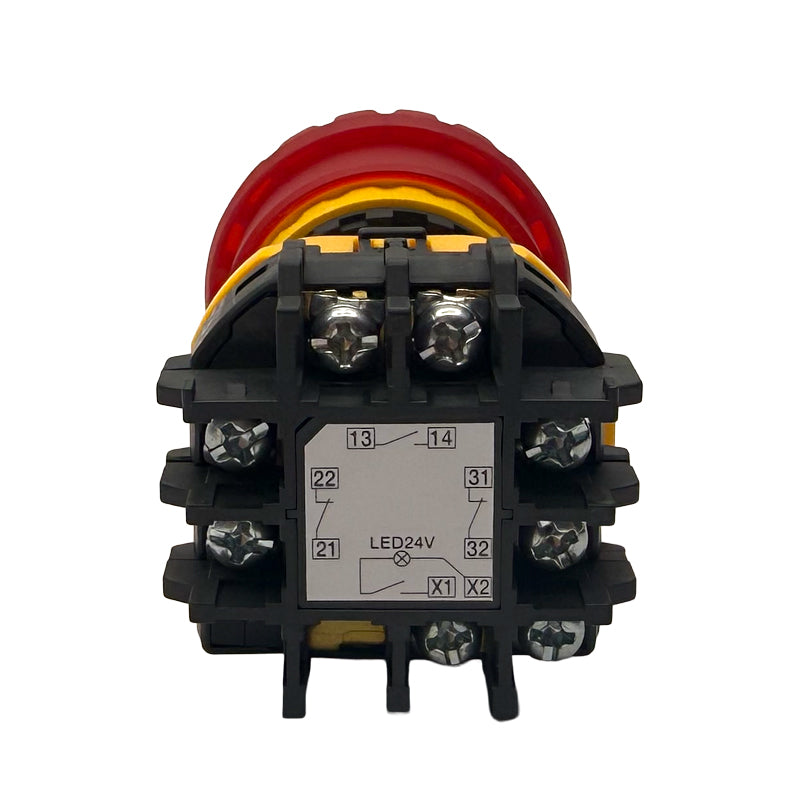

| Circuit: | 3PST-2NC/1NO |
| Switch Function: | On-Off, Off-On |
| Features: | Illuminated (Red) |
| Current Rating: | 5A (AC), 2A (DC) |
| Voltage Rating (AC): | 125V |
| Voltage Rating (DC): | 30V |
| Panel Cutout: | 22mm |
| Termination Style: | Screw Terminal |
| Protection: | IP65, Dust Tight, Water Resistant |
| Operating Temperature: | Non-illuminated: –25 to +60°C (no freezing), Illuminated: –25 to +55°C (no freezing) |
| Illumination Voltage (Nominal): | 24V AC/DC |
